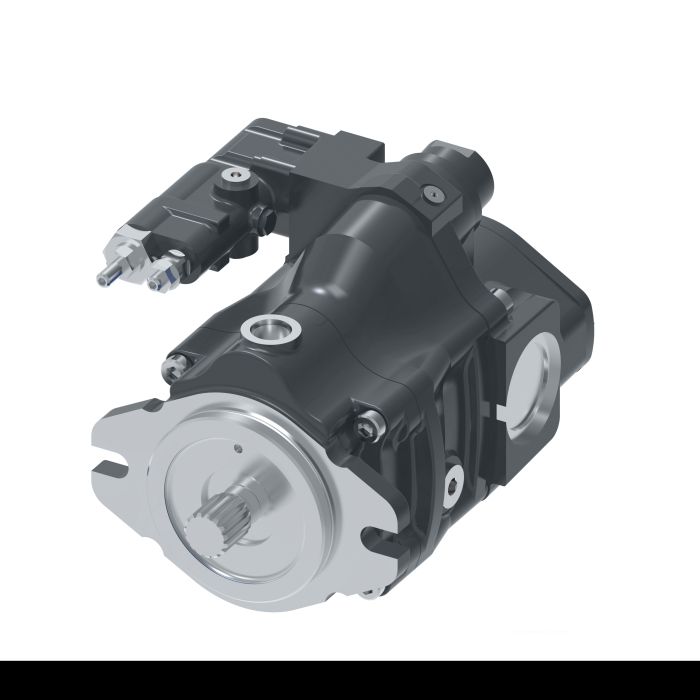

main product photo

PVM020ER05CS01AAC23110001A0A

Ask A Question

Description & Features

Designed for demanding industrial applications, the PVM020ER05CS01AAC23110001A0A is an open circuit axial piston pump from the Vickers line by Danfoss Power Solutions. It is well suited for use in metal forming machines, metal cutting equipment, injection molding machines, conveyor lines, oil and gas equipment, mining machinery, and primary metals processing.

This pump features an adjustable maximum displacement stop and contains a single shaft seal. Pro-FX ready compatibility supports advanced electronic control integration. Notably reduced noise output and strong performance characteristics make this unit a practical choice across varied high-duty-cycle industrial environments. Product width is 5.66 inches.

SKU: 123AL02136A

Supplier Part Number (MPN): 123AL02136A

Specifications

Brand
Vickers by Danfoss
Auxiliary Mounting
Auxiliary Mount Cover Plate
Control Type
Pressure and Flow Compensator with Plugged Orifice
Design Code
A
Dimensions
9.98 in L x 5.66 in W x 6.45 in H
Drive Shaft Type
Straight Keyed
Fluid Compatibility
High Water Content Hydraulic Fluid, Petroleum Based Fluid, Phosphate Ester Fluid, Synthetic Fluid
Housing Color
Black
Housing Material
Iron
Inlet Type
SAE J744-101-2
Main Port Location
Side
Model
PVM020
Mounting Type
2-Bolt Flanged
Outlet Type
SAE J744-101-2
Pressure Comp Setting
227 to 234 Bar [3277 to 3393 lbf/sq-in]
Rotation Direction
Clockwise (Right Hand)
Series
M Series
Valve Plate
Industrial (1800 rpm Max)

Product Questions & Answers (1)

Question by: Janice J on Aug 7, 2025, 3:10 PM
reckon this pump'll hold up in a metal forming shop?
Answer by: Customer Support on Aug 9, 2025, 7:48 AM
It's well-suited for metal forming machines, along with metal cutting equipment and injection molding setups. Should handle it just fine.
