Aeroquip Reusable FTGS - Code

Description & Features

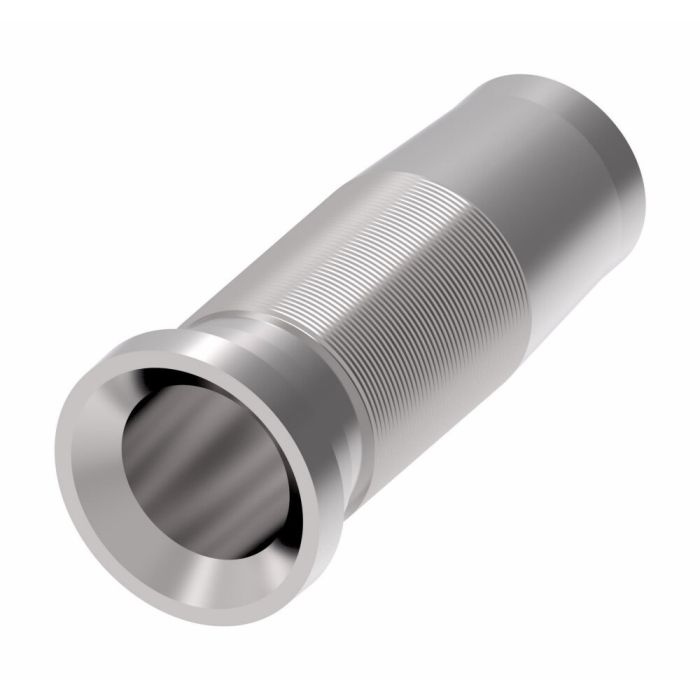

A carbon steel nipple fitting sized for -20 hose dash applications, the Aeroquip Reusable FTGS - Code is part of the 1241 Series and features a male UNEF swivel end connection at a SAE 45° angle. The reusable design supports faster assembly and reduced downtime in the field or on the shop floor, making it well suited for hydraulic hose assemblies where efficient turnaround matters.

Constructed from carbon steel, this fitting is built for durability across a wide range of hydraulic applications. Its reusable construction allows hose ends to be disassembled and reassembled without replacement, cutting assembly times and supporting higher production throughput. Fluid compatibility documentation is available from Aeroquip by Eaton for reference during system specification.

SKU: 1241-20S

Supplier Part Number (MPN): 1241-20S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.28 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female SAE Flared Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg Swivel	Construction Style Reusable	Cut-Off Factor 0.669 in	Dimensions 1.04 in ID x 2.28 in L	End Gender 2 Male	End Size 1 20	End Size 2 16	Finish Dura-Kote™	Fitting Type Nipple	For Use With 1503 Series Hoses	Hose Dash Size 20	Inside Diameter 1.04 in	Material Steel	Material Construction Carbon Steel	Series 1241 Series	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
1241-4S	1/4 in	1/4 in	04
1241-6S	3/8 in	3/8 in	06
1241-8S	1/2 in	1/2 in	08
1241-10S	5/8 in	5/8 in	10
1241-12S	3/4 in	3/4 in	12
1241-16S	1 in	1 in	16

Product Questions & Answers (1)

Question by: Dustin M on Oct 27, 2025, 6:14 AM

Will this fitting hold up in a hydraulic system running at, say, 2500 PSI?

Answer by: Customer Support on Oct 29, 2025, 7:35 AM

This Aeroquip fitting is made from carbon steel, offering good durability for a variety of hydraulic applications. Fluid compatibility documentation is available from Eaton to help you confirm suitability for your specific system requirements.
