Aeroquip Reusable FTGS - Code

Description & Features

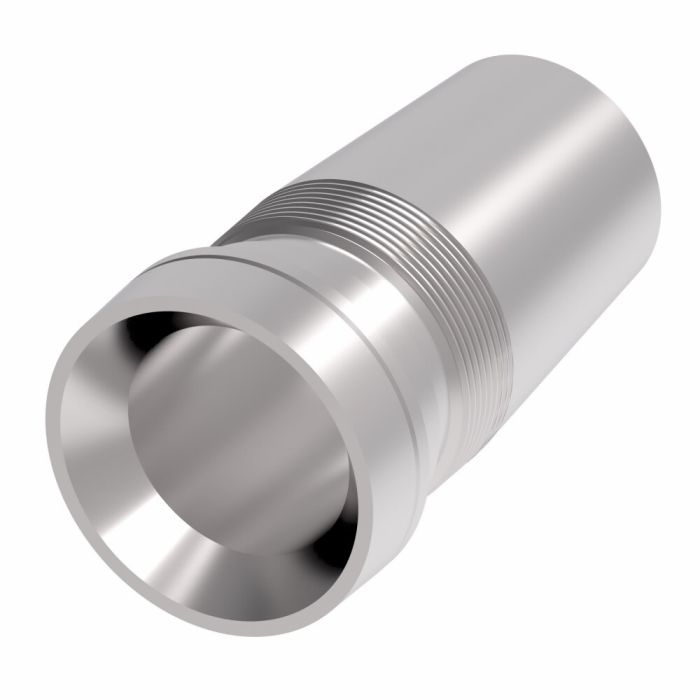

This Aeroquip Reusable FTGS features a male end gender and a UNS end type 2 connection.

Constructed from carbon steel, this nipple is durable and dependable. It is fit for a wide range of applications and can cut assembly times and boost production.

SKU: 1251-4S

Supplier Part Number (MPN): 1251-4S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.297 in	Compatible Hose ID 0.19 in	Compatible Tube OD 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 0.49 in	Dimensions 1.3 in L x 0.37 in W x 0.37 in H	End Connection Torque 11 to 12 lb-ft	End Gender 2 Male	End Size 1 04	Finish Dura-Kote™	Fitting Type Nipple	For Use With 1503 Series Hoses	Hose Dash Size 04	Inside Diameter 0.17 in	Material Steel	Material Construction Carbon Steel	Series 1251 Series	Thread Sealant Without Thread Sealant	Tube Outside Diameter 1 1/4 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
1251-5S	5/16 in	5/16 in	05
1251-6-4S	1/4 in	3/8 in	04
1251-6S	3/8 in	3/8 in	06
1251-8S	1/2 in	1/2 in	08
1251-10S	5/8 in	5/8 in	10
1251-12S	3/4 in	3/4 in	12
1251-16S	1 in	1 in	16
1251-20S	1-1/4 in	1-1/4 in	20
1251-24S	1-1/2 in	1-1/2 in	24
1251-32S	2 in	2 in	32
