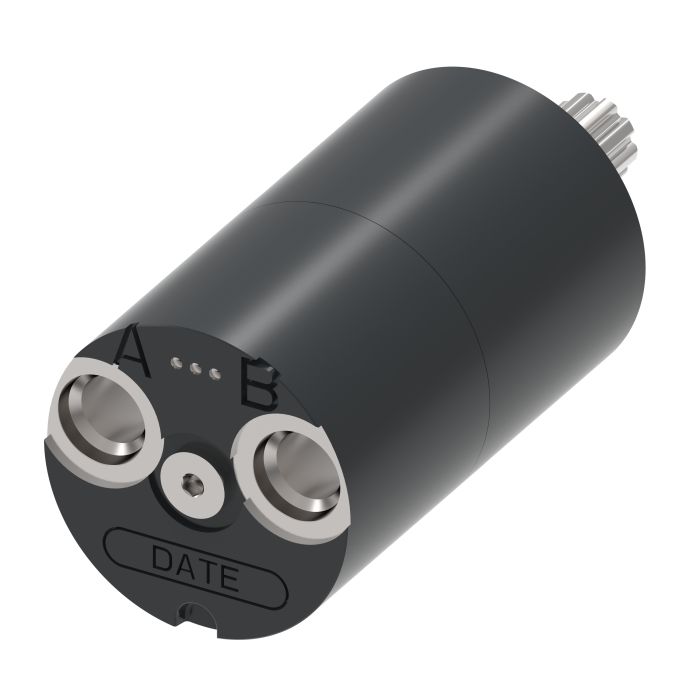

main product photo

Char-LynnJ Series Motor

Ask A Question

Description & Features

The Eaton Char-Lynn J Series Motor is a compact yet powerful hydraulic motor designed for a range of applications, including agricultural augers, harvesters, seeders, marine bow thrusters, and food processing equipment. Constructed from durable cast iron, this Char-Lynn J Series Motor is engineered for extended bearing life and increased shaft seal performance. It delivers a torque rating of 25 newton metres and a flow rate of 21 litres per minute.

This low-speed Gerotor/Geroler motor has a product width of 2.37.

SKU: 129-0010

Supplier Part Number (MPN): 129-0010-002

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
B
Dimensions
6.2 in L x 2.37 in W x 2.37 in H
Drain Port Dimension
3/8-24 UNF-2B SAE O-ring
Frame Size
13
Housing Material
Iron
Mounting Type
5-Bolt Round Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
End, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
J Series
Shaft Size
16.5 mm Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (3)

Question by: Kirk Y on Apr 4, 2025, 6:29 PM
got a little auger setup, how much flow is this J series motor supposed to run on
Answer by: Customer Support on Apr 6, 2025, 3:13 PM
For flow, it is rated at 21 litre per minute.
Question by: Dean S on Aug 22, 2025, 11:54 AM
runs about 21 liters a minute, but what kind of torque are we actually getting out of this thing for a seeder application?
Answer by: Customer Support on Aug 23, 2025, 9:28 PM
At 21 liters per minute flow, this motor puts out 25 newton metres of torque. For a seeder drive that's a solid output in a compact package, and the cast iron housing holds up well under the kind of steady field use that wears out lighter motors faster than you'd expect.
Question by: Jerry B on Sep 10, 2025, 5:45 PM
Would this work good on a seeder?
Answer by: Customer Support on Sep 12, 2025, 6:49 AM
Agricultural seeders are a listed application, yes.
