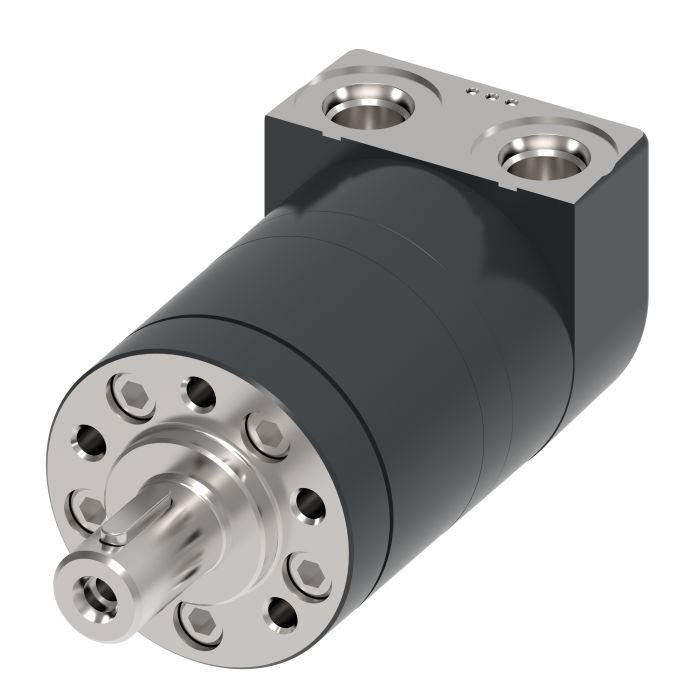

main product photo

Char-LynnJ Motor W/Black PAINT

Ask A Question

Description & Features

This Char-LynnJ Motor is finished with black paint and is part of the Char-Lynn sub-brand. Constructed from cast iron, it's designed for demanding applications such as agricultural augers, harvesters, seeders, and marine bow thrusters, as well as food processing equipment.

This low-speed gerotor/geroler motor offers a compact yet powerful design, extended bearing life, and an increased shaft seal. It provides a torque rating of 25 newton meters and a flow rate of 21 liters per minute. The product has a width of 2.38 inches.

SKU: 129-0022

Supplier Part Number (MPN): 129-0022-002

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
B
Dimensions
5.06 in L x 2.38 in W x 2.53 in H
Drain Port Dimension
1/8 in
Frame Size
13
Housing Material
Iron
Mounting Type
5-Bolt Round Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Segment Code
A
Series
J Series
Shaft Size
16 mm Dia
Shaft Type
Straight Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Dwayne M on May 31, 2025, 1:45 PM
Reckon this motor will work for a seed drill?
Answer by: Customer Support on Jun 2, 2025, 6:56 AM
It's designed for demanding applications, including seeders, so it should be a good fit.
