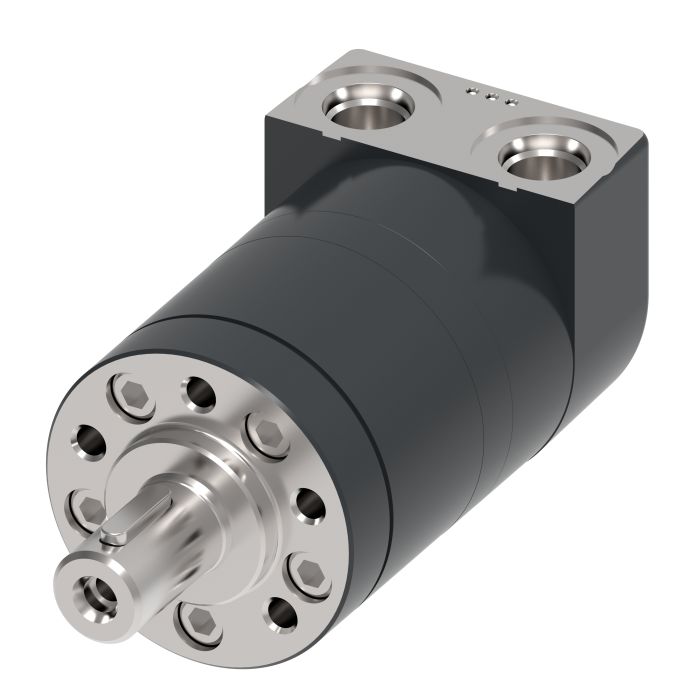

CHAR LYNN M0J19B02G3000A0B

Ask A Question

Description & Features

Designed for demanding low-speed, high-torque applications, the Char-Lynn M0J19B02G3000A0B is a J Series Spool Geroler motor built to Danfoss/Eaton standards. Cast iron construction provides durability across a range of agricultural and marine environments, including harvesters, seeders, augers, and bow thrusters, as well as food processing equipment.

Rated at 50 Nm of torque with a flow rate of 21 litres per minute, this motor balances output capability with a compact form factor. Extended bearing life and an increased shaft seal capacity make it well suited to continuous-duty installations where reliability under sustained load is a priority.

SKU: 129-0056

Supplier Part Number (MPN): 129-0056-002

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
B
Dimensions
4.9 in L x 2.37 in W x 2.37 in H
Drain Port Dimension
M10 x 1-6H O-ring
Frame Size
30
Housing Material
Iron
Mounting Type
5-Bolt Round Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Aligned
Port Type
Metric, O-ring
Seal Material
NBR
Segment Code
B
Series
J Series
Shaft Size
16 mm Dia
Shaft Type
Straight Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Keith H on Nov 12, 2025, 5:17 PM
Reckon this motor'd do okay on a food processing line, dealing with, say, a pretty steady stream of product?
Answer by: Customer Support on Nov 14, 2025, 3:27 PM
This Char-Lynn J Series motor is built with that kind of continuous duty in mind. The extended bearing life and increased shaft seal capacity should hold up well.
