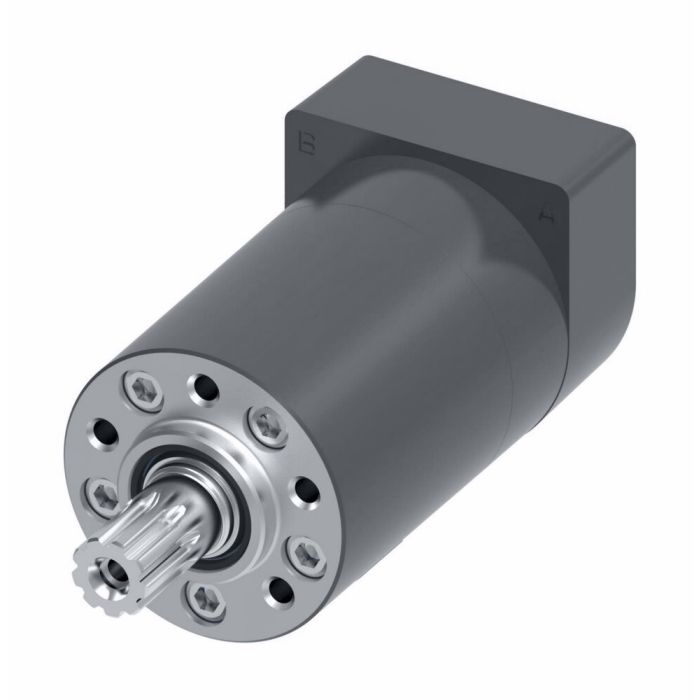

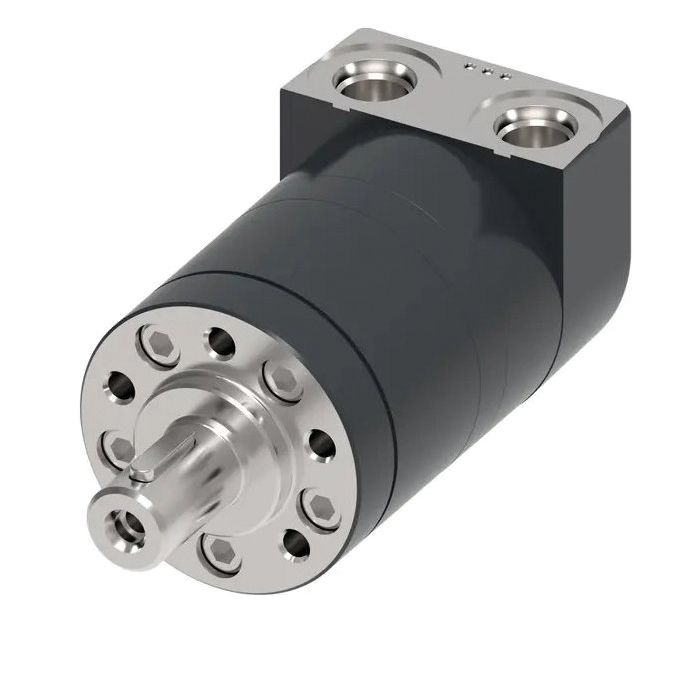

CHAR LYNN M0J19A04D000000B

Description & Features

Designed for demanding low-speed, high-torque applications, the Char-Lynn M0J19A04D000000B is a J Series spool Geroler motor from Danfoss/Eaton's Char-Lynn line. Built with a cast iron housing, it delivers a torque rating of 50 Nm at a flow rate of 21 litres per minute, making it well-suited for agricultural equipment including augers, harvesters, and seeders, as well as marine bow thrusters and food processing machinery.

The motor features extended bearing life and an increased shaft seal capacity, supporting reliable performance under continuous load. Its compact form factor allows for flexible mounting in space-constrained installations without sacrificing output. The male shaft configuration and Geroler displacement mechanism contribute to smooth, consistent rotation across variable load conditions.

SKU: 129-0346

Supplier Part Number (MPN): 129-0346-002

Specifications

Brand Danfoss	Bearing Type Hydrodynamic Journal	Check Valve Function Without Check Valve Function	Design Code B	Dimensions 5.588 in L x 2.38 in W x 2.53 in H	Frame Size 30	Housing Material Iron	Mounting Type 5-Bolt Round Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location Side, Aligned	Port Type UNF-2B, SAE O-ring	Seal Material NBR	Series J Series	Shaft Size 11/16 in Dia	Shaft Type Straight Keyed	Valve Type Spool

Product Questions & Answers (1)

Question by: Stan B on Jan 4, 2026, 2:41 PM

Wondering if this Char-Lynn motor would work okay on a small, say, 20-foot bow thruster setup on my boat?

Answer by: Customer Support on Jan 6, 2026, 6:54 AM

For bow thruster applications, this motor's torque and flow rate make it suitable. Marine bow thrusters are specifically listed as an application, so it should perform as expected in that role.
