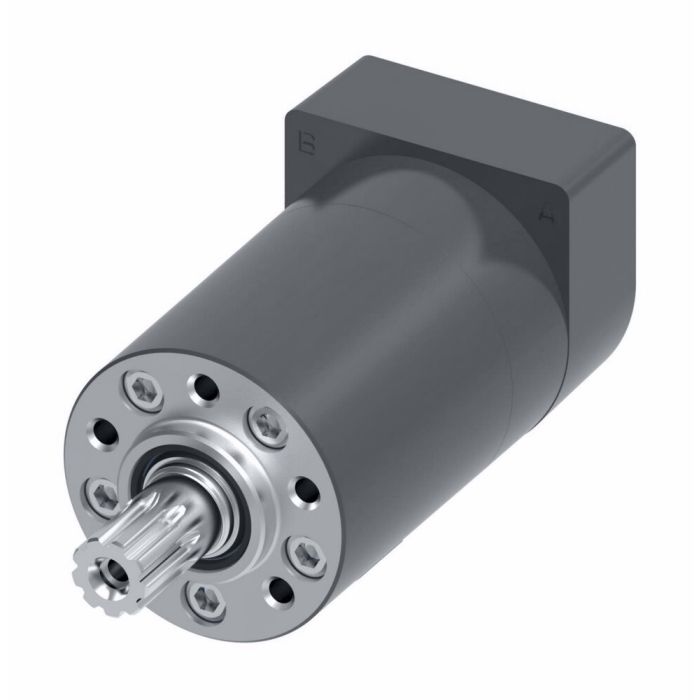

CHAR LYNN M0J30B02H2000A0B

Ask A Question

Description & Features

Ideal for demanding applications such as agricultural augers, harvesters, seeders, marine bow thrusters, and food processing, this Char-Lynn J Series Spool Geroler motor delivers reliable performance. Constructed from durable cast iron, it offers a compact yet powerful solution with a flow rate of 21 litres per minute. The motor's extended bearing life and increased shaft seal ensure long-lasting operation, even in challenging environments.

The CHAR LYNN M0J30B02H2000A0B is designed for low-speed, high-torque applications with a torque rating of 62 newton metres. Its robust design and the use of high-quality materials make it a preferred choice for various industrial settings. The product is part of the Char-Lynn sub-brand, known for its innovation in hydraulic and pneumatic solutions.

SKU: 129-0456

Supplier Part Number (MPN): 129-0456-002

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
B
Dimensions
6.15 in L x 2.38 in W x 2.51 in H
Drain Port Dimension
1/8 in
Frame Size
50
Housing Material
Iron
Mounting Type
5-Bolt Round Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
End, Aligned
Port Type
BSP
Seal Material
NBR
Segment Code
B
Series
J Series
Shaft Size
16 mm Dia
Shaft Type
Straight Keyed
Valve Type
Spool

Similar Products

Model Number Port Location Dimensions Price Action
CHAR LYNN M0J30B02E2000A0B

129-0455

Side, Aligned

5.97 in L x 2.38 in W x 2.53 in H

Product Questions & Answers (1)

Question by: Steve R on Dec 16, 2025, 9:21 AM
Would this motor work okay on a seeder, figuring it’s made of cast iron and all?
Answer by: Customer Support on Dec 18, 2025, 6:18 AM
This Char-Lynn motor is definitely up to the task for agricultural seeders. Its cast iron construction provides the durability needed for demanding applications.
