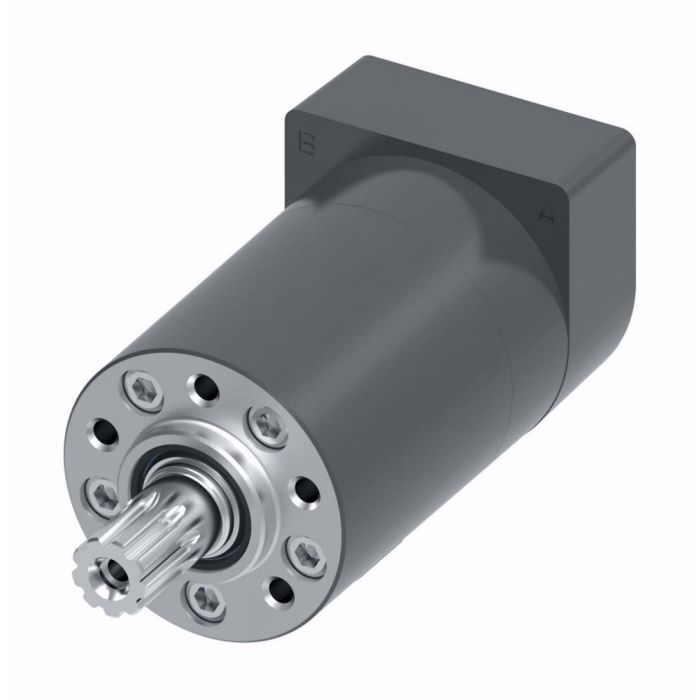

CHAR-LYNN J MOTOR

Description & Features

The Danfoss Power Solutions Char-Lynn J Series Spool Geroler motor constructed from robust cast iron is engineered for demanding applications such as agricultural augers harvesters seeders marine bow thrusters and food processing tasks.

This motor boasts an extended bearing life and increased shaft seal ensuring minimal maintenance requirements while maintaining high performance. With a torque rating of 38 newton meters it is well-suited for heavy-duty industrial use.

Its compact design measuring 2.37 inches in width allows for seamless integration into various machinery setups. The low-speed Gerotor/Geroler configuration provides precise control enhancing its applicability in diverse operational environments.

MPN: 129-0537-002

Supplier Part Number: 129-0537-002

Specifications

Brand Danfoss	Bearing Type Hydrodynamic Journal	Check Valve Function Without Check Valve Function	Color Black	Design Code B	Dimensions 4.6 in L x 2.37 in W x 2.37 in H	Drain Port Dimension 3/8-24 UNF-2B SAE O-ring	Frame Size 20	Housing Material Iron	Mounting Type 5-Bolt Round Flanged	Orbital Gearwheel Set Standard	Orbital Gearwheel Set Type Geroler	Painted Without Painted	Port Location End, Aligned	Port Type UNF-2B, SAE O-ring	Seal Material NBR	Series J Series	Shaft Size 5/8 in Dia	Shaft Type Straight Keyed	Valve Type Spool

Product Questions & Answers (3)

Question by: Frank C on Jan 18, 2026, 10:54 AM

got a tight spot on my machine. how wide is this char-lynn J motor?

Answer by: Customer Support on Jan 19, 2026, 3:32 PM

Compact packaging is one of the big draws here. The motor is listed at 2.37 inches wide, which helps when you are trying to tuck it into a crowded setup.

Question by: Lee P on Dec 23, 2025, 9:59 PM

Will this here motor work for a seeder, like the description says?

Answer by: Customer Support on Dec 25, 2025, 6:33 PM

Designed for agricultural applications, this Char-Lynn J motor is well-suited for seeders and other equipment like augers and harvesters.

Question by: Harvey C on Oct 17, 2025, 3:29 PM

Running a grain auger setup and need something that won't quit on me mid-season. That 38 newton meter torque rating, is that enough muscle for heavy auger work, or is this more of a light-duty motor?

Answer by: Customer Support on Oct 18, 2025, 5:48 PM

For grain auger applications, 38 newton meters is right in the working range this motor was built for. Agricultural augers are literally one of the listed use cases, so you're not pushing it into territory it wasn't meant for. The cast iron construction adds to that confidence, it's not a lightweight build. The Geroler configuration also gives you smooth, controllable low-speed operation, which matters when you're moving grain and don't want surging or inconsistent flow through the auger.
