DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO

Description & Features

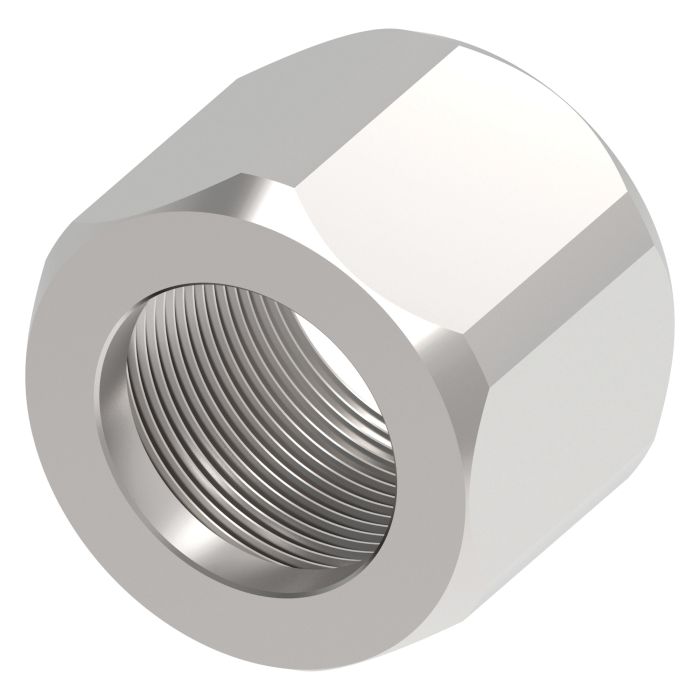

Part of the Aeroquip 1290 Series, the Danfoss / Eaton Adptrs/Tube Adapter - Co is a carbon steel flared nut designed for use in hydraulic tube connections where reliable sealing and durability are required. The Versil-Flare design supports a wide range of assembly configurations, with hundreds of styles available across the series to accommodate varied installation requirements.

Finished in zinc clear trivalent chromate through Aeroquip's Dura-Kote plating process, this nut delivers strong corrosion resistance suitable for demanding industrial environments. It is rated to operating pressures above SAE standards and carries SAE certification 070110. Manufactured at the Van Wert, Ohio facility.

SKU: 1290-32S

Supplier Part Number (MPN): 1290-32S

Specifications

Brand
Aeroquip® by Danfoss
Connection Type
SAE 37 deg Flared
Dimension Standards
SAE 070110/J514
Finish
Dura-Kote™
Fitting Type
Nut
For Use With
900605 Tube Sleeves
Hex Size
2-7/8 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Series
1290 Series
Thread Size
2-1/2-12

Similar Products

Model Number Connection Size Price Action
Steel Tube Fitting, JIC 37 deg Flare Nut for 0.38 Inch OD Tube

1290-6S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 0.19 Inch OD Tube

1290-3S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 0.75 Inch OD Tube

1290-12S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 0.25 Inch OD Tube

1290-4S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 1.00 Inch OD Tube

1290-16S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 0.50 Inch OD Tube

1290-8S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 0.31 Inch OD Tube

1290-5S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 0.63 Inch OD Tube

1290-10S Steel JIC Tube Nut

Steel Tube Fitting, JIC 37 deg Flare Nut for 1.25 Inch OD Tube

1290-20S Steel JIC Tube Nut

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-4B

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-5B

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-6B

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-8B

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-10B

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-12B

AEROQUIP

1290-14S

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-16B

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-20B

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-24B

Danfoss / Eaton Aeroquip 1290 Series Nut

1290-24S

DANFOSS / EATON REUSABLE ADAPTER - CODE

1290-32B

Product Questions & Answers (1)

Question by: Judy M on Mar 18, 2026, 11:06 AM
So, this is just the nut, right? Not the whole adapter?
Answer by: Customer Support on Mar 19, 2026, 12:13 PM
That's correct. This listing is for the flared nut only, part of the Aeroquip 1290 Series. It's a spare part, not the complete assembly.
