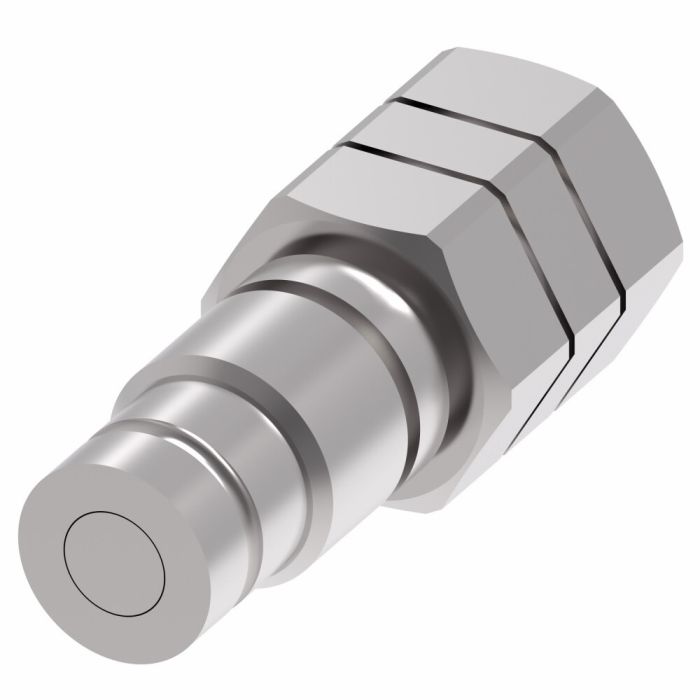

DANFOSS / EATON #12 FF PLUG X #8 FBOSS

Ask A Question

Description & Features

The Danfoss / Eaton Hansen FF Series Quick Disconnect Couplings Plug is engineered for hydraulic and fluid transfer applications. Designed without the need for special tools it allows for quick connect and disconnect efficiency. This product exceeds ISO 16028 operating pressures and is compliant with REACH RoHS and the European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3.

Manufactured from durable carbon steel and featuring NBR+AU seal materials the coupling plug incorporates a sleeve lock safety locking mechanism. It is suitable for use in construction equipment agricultural machinery on-highway vehicles and stationary in-plant hydraulics. Notably it is interchangeable with HTMA couplings in the 3/8 size making it versatile and reliable.

With a 2-way valve type push-to-connect end type 1 and SAE end type 2 this plug ensures secure connections. The product can operate effectively at temperatures as low as -13F.

Supplier Part Number: 12FFP75UN

MPN: 12FFP75UN

Specifications

Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
Certifications
ISO 16028
Compliances
REACH|RoHS Compliant|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
SAE
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
20.3 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Flat Face
Item Type
Male Half
Language
English
Minimum Working Temperature
-13
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.56
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Sub Brand
Hansen
Supplier Part Number
12FFP75UN
Torque Rating
43.8 lb/ft
Torque Rating
43.8 lb/ft
Valve Type
2 way
Product Weight
0.65 lbs

Related Documents

Product Questions & Answers (3)

Question by: Donna B on Mar 23, 2026, 7:17 AM
Will this plug work for hydraulic fluid transfer on my farm equipment?
Answer by: Customer Support on Mar 24, 2026, 7:31 PM
This coupling plug is definitely suitable for hydraulic and fluid transfer applications, including agricultural equipment. It's also good for construction equipment, on-highway vehicles, and stationary in-plant hydraulics, so it's a versatile piece of equipment.
Question by: Kent F on Jun 8, 2025, 9:33 PM
got a flat-face setup on a skid steer. is this plug the kind that swaps with the 3/8 HTMA couplers?
Answer by: Customer Support on Jun 10, 2025, 12:00 PM
For 3/8 size HTMA interchange, this plug is called out as interchangeable with HTMA couplings in that size, and it is a flat-face (FF series) male half with a push-to-connect end.
Question by: Danny M on May 25, 2025, 7:40 AM
Got a piece of equipment running HTMA couplings in the 3/8 size, will this plug swap right in without having to modify anything?
Answer by: Customer Support on May 26, 2025, 8:08 AM
For 3/8 size HTMA couplings, yes, this plug is interchangeable. The FF Series is specifically listed as compatible with HTMA in that size, so you can swap it in without reworking the connection. The flat face internal connection type and push-to-connect end keep things straightforward on the installation side.
