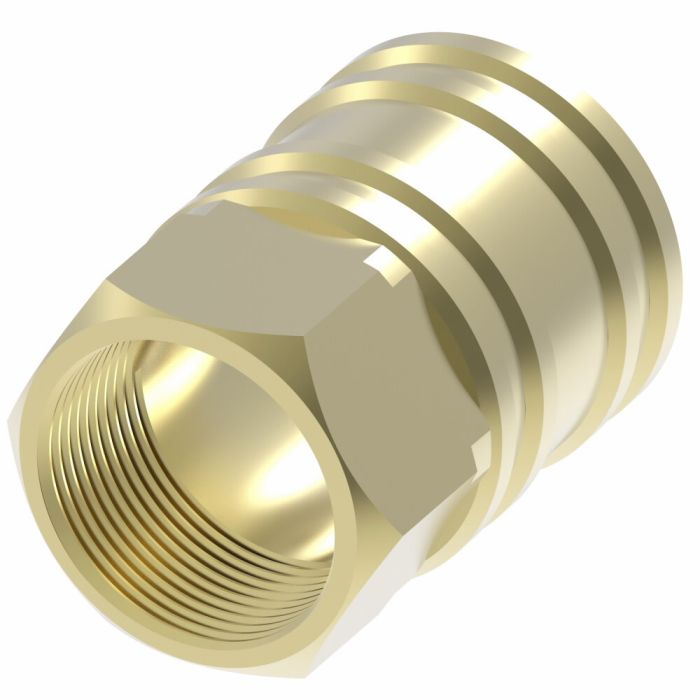

Constructed from brass with a Buna-N seal, this quick disconnect coupling plug operates reliably across a minimum working temperature of -40°F and exceeds ISO 16028 operating pressure standards. The 1-1/2 port size features a Push to Connect end with an NPTF female thread connection, supported by a ball lock internal mechanism and a straight-through valve type for unrestricted flow.
The Danfoss / Eaton Hansen Cplng is well-suited for fluid transfer across a wide range of industries, including chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning applications. Connection and disconnection require no special tools, reducing downtime during line changes or maintenance.
SKU: 12S46
Supplier Part Number (MPN): 12S46
|
Alternate Part Numbers
MINO-00015X02893
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
297 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1 1/2
|
Product Material
Brass
|
Product Width
3.13
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
12S46
|
Valve Type
Straight Thru
|
Product Weight
2.72 lbs
|
