Danfoss / Eaton Brass Adapter

Description & Features

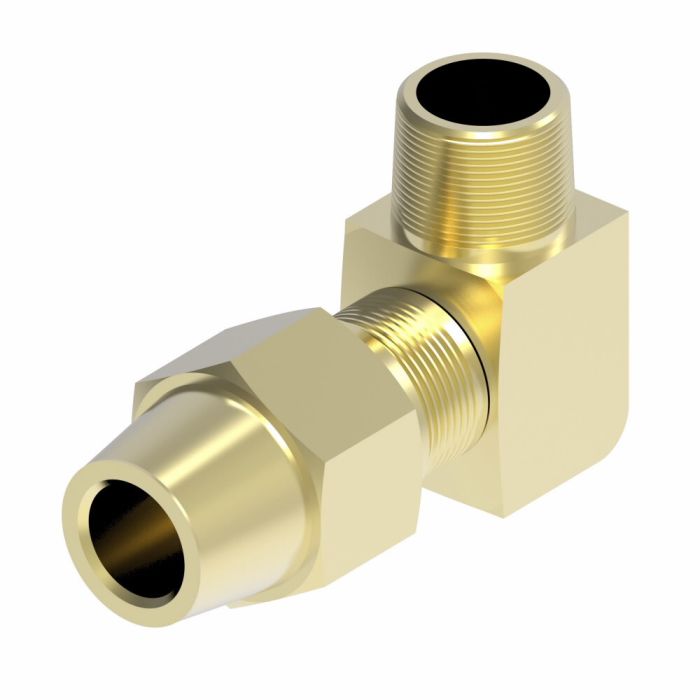

This Danfoss / Eaton Brass Adapter, also known as an air brake connector, is suitable for copper tubing applications. This 90˚ male elbow adapter features Dura-Kote plating, providing enhanced corrosion resistance.

The adapter conforms to SAE standard 120202BA and is made of brass. End 1 is a 0.25 NPTF male connection, while End 2 is a 0.25 female connection for line/hose/tube. It withstands minimum working temperatures of -65 degrees. Design flexibility is afforded with hundreds of styles to choose from, with operating pressures above SAE standards. The hex size 2 measures 0.56, and the product width is 0.59.

SKU: 1369X4X4

Supplier Part Number (MPN): 1369X4X4

Specifications

Alternate Part Numbers Alternate Part Number MINO-00015X02963	Certifications SAE 120202BA	Drop Dimension 0.89	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 0.25	End Size 2 0.25	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.56	ICC Elbow Adapters	Item Type NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.59	Sub Brand None	Supplier Part Number 1369X4X4	Product Weight 0.10 lbs

Product Questions & Answers (1)

Question by: Kurt C on May 29, 2025, 9:31 AM

Will this fitting hold up if I use it for air brakes on my old farm truck? Gotta make sure it can handle the pressure.

Answer by: Customer Support on May 30, 2025, 9:13 PM

Design flexibility is built into these Danfoss / Eaton adapters, which allows for operating pressures above SAE standards. They are specifically made for air brake connectors using copper tubing.
