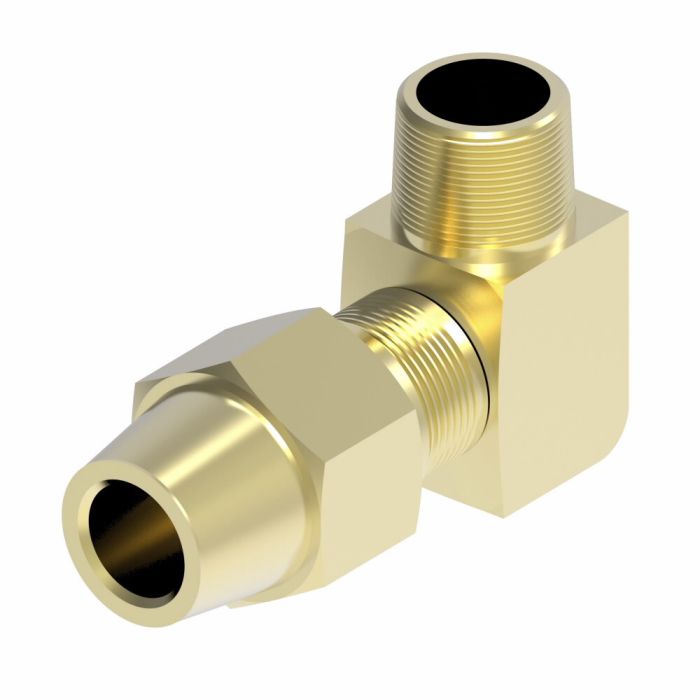

A 90° elbow adapter designed for connecting a ¼" NPTF male thread to a ⅜" female line/hose/tube end, this Danfoss / Eaton Brass Adapter is well-suited for air brake and fluid line routing where a right-angle transition is required. Brass construction provides reliable performance across a broad temperature range, with a minimum working temperature of -65°F.
Manufactured under the Aeroquip brand and certified to SAE 120202BA, the adapter features Dura-Kote plating for corrosion resistance and is rated for operating pressures above standard SAE requirements. With a hex size of 0.56" and a drop dimension of 0.94", the compact form factor fits within typical installation envelopes for mobile and industrial fluid systems.
SKU: 1369X6
Supplier Part Number (MPN): 1369X6
|
Alternate Part Numbers
MINO-00015X02964
|
Certifications
SAE 120202BA
|
Drop Dimension
0.94
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.25
|
End Size 2
0.38
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.56
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.59
|
Sub Brand
None
|
Supplier Part Number
1369X6
|
Product Weight
0.12 lbs
|
