main product photo

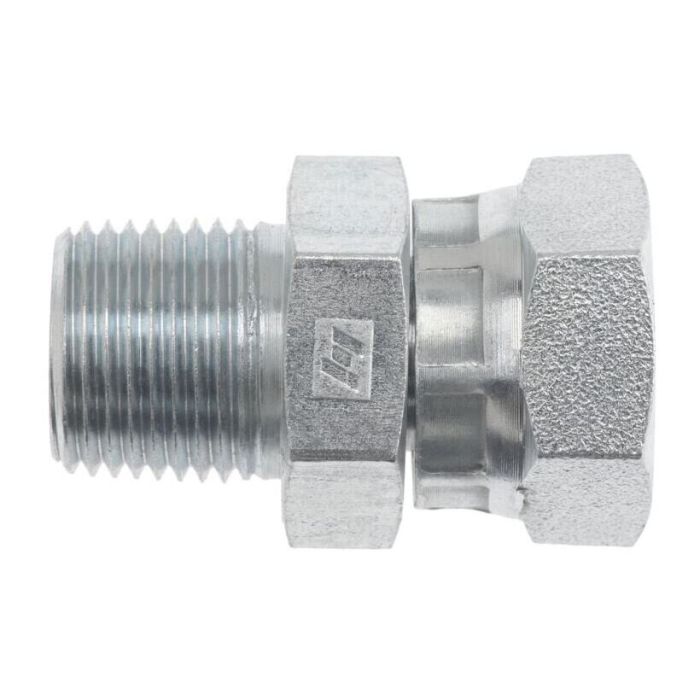

1/4 MP X 3/8 FP SW STAINLESS STEEL

Ask A Question

Description & Features

Crafted from straight stainless steel, this durable fitting is designed to withstand rigorous industrial applications. The 1/4 MP X 3/8 FP SW Stainless Steel fitting features a male NPTF thread and a female NPSM swivel, ensuring secure and leak-free connections. With a maximum dynamic pressure rating of 6,000 PSI, this fitting is ideal for high-pressure hydraulic systems that require robust and reliable performance.

The fitting adheres to SAE standards, with the male thread conforming to SAE J476 and the female thread to SAE J514. Its compact design, with an overall length of 1.520 mm and a hex size of 0.875 mm, allows for easy installation in tight spaces. This component is built to handle demanding industrial environments while maintaining optimal functionality.

SKU: 1404-04-06-SS

Supplier Part Number (MPN): 1404-04-06-SS

Alternate Part Numbers: SS-1404-04-06

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
1.002 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.52 in L
Fitting Type
Adapter
Hex Size
0.813 x 0.875 in
l2 Dimensions
1.31 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
6000 psi
Series
1404 Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
3/8-18 x 1/4-18

Product Questions & Answers (1)

Question by: Frank B on May 27, 2025, 8:49 AM
Reckon this fitting will hold up in a hydraulic system pushing 6,000 PSI?
Answer by: Customer Support on May 29, 2025, 6:48 AM
Absolutely, this fitting is designed to handle a maximum dynamic pressure of 6,000 PSI, making it well-suited for high-pressure hydraulic systems.
