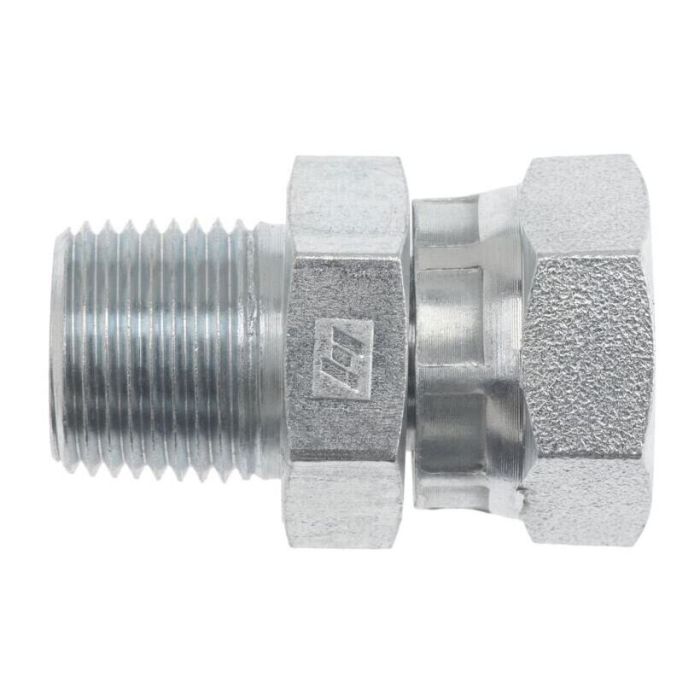

Brennan Adapter. zinc plated steel. 1/2 female pipe swivel 1

Description & Features

Constructed from durable straight steel this component ensures robust performance and reliability in demanding environments. The zinc-plated finish enhances corrosion resistance providing longevity in various industrial applications.

The adapter features a 1/2-14 female NPSM swivel thread designed to meet SAE J514 standards and a 1/4-18 male NPTF thread compliant with SAE J476 standards. With a maximum dynamic pressure rating of 5000 psi it is suitable for high-pressure operations.

The product has an overall length of 1.700 mm and a secondary length of 1.440 mm offering a compact yet efficient design. The 1.000 mm hex size allows for easy installation.

Supplier Part Number: 1404-04-08

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1404-04-08	Product Weight 0.20 lbs

Product Questions & Answers (3)

Question by: Ross S on Jul 10, 2025, 7:22 PM

trying to hook a 1/2 pipe swivel end to a 1/4 nptf port, is that what this adapter does

Answer by: Customer Support on Jul 12, 2025, 2:59 PM

For connecting those two thread types, it matches up a 1/2-14 female NPSM swivel on one side with a 1/4-18 male NPTF on the other. The female swivel thread is to SAE J514 and the male NPTF side is to SAE J476.

Question by: Shawn S on Oct 1, 2025, 4:54 PM

Will this adapter hold up in a hydraulic system running around 4800 psi?

Answer by: Customer Support on Oct 3, 2025, 7:52 AM

This adapter is rated for a maximum dynamic pressure of 5000 psi, so it should be suitable for your system, assuming the pressure remains consistent.

Question by: Bonnie W on Oct 12, 2025, 1:58 PM

what's the pressure rating on this adapter, and will it hold up runnin continuous on a hydraulic line?

Answer by: Customer Support on Oct 14, 2025, 7:31 AM

Rated at 5,000 psi maximum dynamic pressure, so it's built for serious hydraulic work. The zinc-plated steel construction gives it solid durability under sustained load, and the NPTF male thread on one end gives you a reliable pressure-tight seal without relying on sealant tape alone. For continuous-duty hydraulic lines operating within that pressure ceiling, it should hold up just fine.
