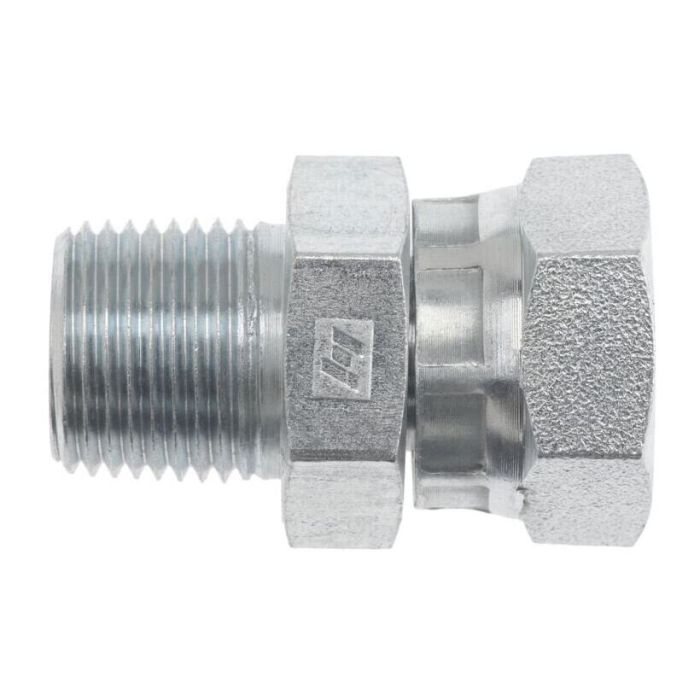

06MP-06FPS STRAIGHT

Description & Features

The 06MP-06FPS Straight from Brennan Industries Inc expertly engineered for high-pressure environments ensures reliable performance. Designed to meet the rigorous SAE J476 and SAE J514 standards this adapter offers maximum dynamic pressure capacity of 6 000 psi.

Manufactured from robust straight steel the adapter features a Male NPTF thread type of 3/8-18 and a Female NPSM Swivel thread type of 3/8-18. The adapter's precision engineering includes a thread B1 drill size of 0.406 mm and a thread B2 drill size of 0.32 mm.

This product with an overall length of 1.520 mm and length (L2) of 1.300 mm ensures a compact and secure fit in critical applications. The hex size C stands at 0.875 mm ensuring efficient and straightforward installation.

Compliance with California's PROP-65 warning underscores the product's adherence to safety and regulatory standards.

Supplier Part Number: 1404-06-06

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1404-06-06	Product Weight 0.14 lbs

Product Questions & Answers (3)

Question by: Rod P on Nov 12, 2025, 2:41 PM

What's the max pressure this fitting can handle?

Answer by: Customer Support on Nov 14, 2025, 12:17 PM

It's engineered to hold a maximum dynamic pressure of 6,000 psi.

Question by: Troy B on Jan 19, 2026, 9:19 PM

Running 3/8 NPT fittings on a hydraulic line that sees some real pressure spikes, this swivel end on the female side, does it stay put or is it gonna work loose over time?

Answer by: Customer Support on Jan 21, 2026, 7:35 AM

Swivel fittings like this one can feel a little loose before installation, but once the Male NPTF end is threaded in and the system is pressurized, the NPSM swivel seat locks up against the mating surface and holds position. Brennan built this to 6,000 psi dynamic pressure capacity, so moderate spikes well within that range won't cause the swivel to back off or leak down. The NPTF thread on the fixed end also creates a mechanical seal without relying solely on sealant, which helps a lot in systems that cycle frequently.

Question by: Johnny M on Feb 9, 2026, 8:11 PM

trying to swap out an old adapter, is this the straight one that goes 3/8-18 male nptf to 3/8-18 female npsm swivel?

Answer by: Customer Support on Feb 11, 2026, 6:16 AM

Function-wise, it is a straight steel adapter with a 3/8-18 Male NPTF on one end and a 3/8-18 Female NPSM swivel on the other. It’s in Brennan’s 1404 series and matches SAE J476 on the NPTF side and SAE J514 on the swivel side.
