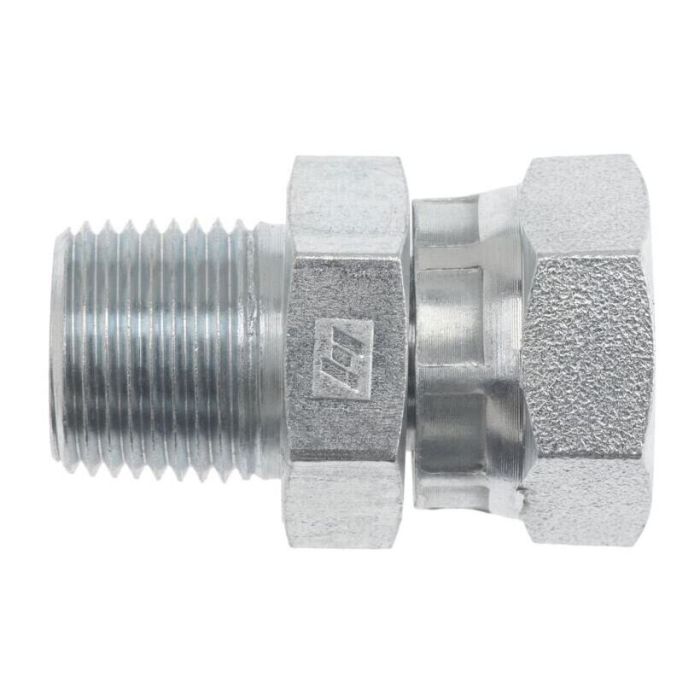

08MP-08FPS STRAIGHT STNLS

Ask A Question

Description & Features

This straight stainless steel fitting features a 1/2-14 Male NPTF thread and a 1/2-14 Female NPSM Swivel thread, manufactured to SAE J476 and SAE J514 specifications. The 08MP-08FPS STRAIGHT STNLS is part of the 1404 series.

This fitting has a maximum dynamic pressure rating of 5,000 PSI.

SKU: 1404-08-08-SS

Supplier Part Number (MPN): 1404-08-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
1.89 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.89 in L
Fitting Type
Adapter
Hex Size
1 x 1 in
l2 Dimensions
1.61 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
1404 Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Ray C on Mar 30, 2026, 10:33 AM
pressure rating on this fitting -- is 5,000 PSI enough for most hydraulic line work or is that on the lower end?
Answer by: Customer Support on Apr 1, 2026, 6:29 AM
For the bulk of standard hydraulic applications, 5,000 PSI dynamic pressure handles the load just fine. Most industrial and mobile hydraulic systems run well under that ceiling, so unless you're working with something high-cycle or extreme-pressure, this fitting sits comfortably in range for everyday line work.
