12MP-12FPS STRAIGHT

Description & Features

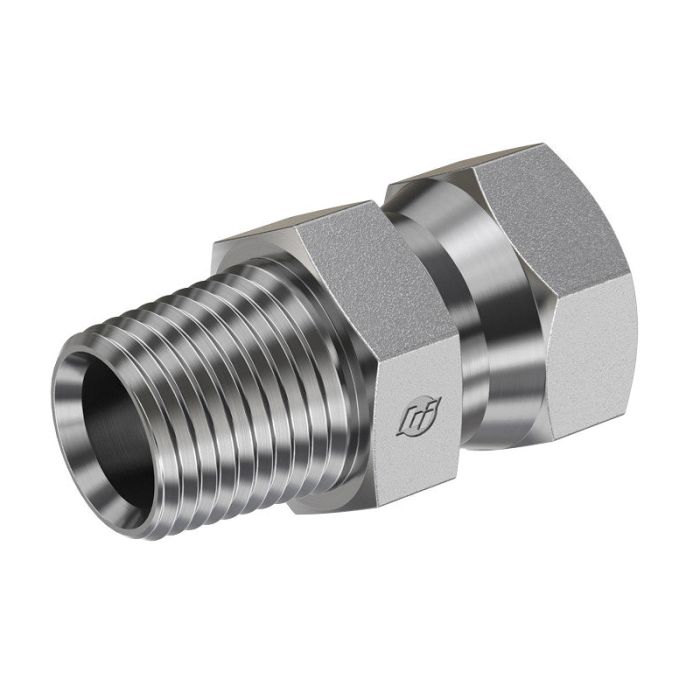

The 12MP-12FPS Straight by Brennan Industries Inc is designed for high-performance applications requiring reliable and robust adapters. It is crafted from straight steel ensuring durability and strength under demanding conditions.

This adapter is part of the 1404 series and boasts a maximum dynamic pressure tolerance of up to 3 000 PSI. The adapter features a Male NPTF thread on one end (3/4-14 SAE J476 specification) and a Female NPSM Swivel thread on the other end (3/4-14 SAE J514 specification) making it suitable for various professional applications.

Measurements include an overall length of 2.080 mm with a secondary length of 1.750 mm and hex size of 1.250 mm. Each thread has a drill size specification of 0.719 mm for B1 and 0.75 mm for B2. This ensures a precise and secure fit in industrial environments.

The product has a compact cubic inch space of 3.25 ideal for systems with space constraints. Note: California residents should be aware of the Prop-65 warning associated with this product.

MPN: 1404-12-12

Supplier Part Number: 1404-12-12

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
3.25 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4
l2 Dimensions
1-3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Series
1404 Series
Thread 2 Drill Dimensions
0.75 in
Thread B1 Drill Dimensions
0.719 in
Thread Size
3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/4-14 Female NPT Swivel To 1/2-14 Male NPT, Straight

1404-08-12 Steel Female To Male NPT Adapter

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-1/4-11-1/2 Male NPT, Straight

1404-20-16 Steel Female To Male NPT Adapter

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-14 Male NPT, Straight

1404-12-06 Steel Female To Male NPT Adapter

3/4 in

3/8 in

3/4-14 x 3/8-18

0.88 x 1.12 in

02MP-02FPS STRAIGHT

1404-02-02

1/8 in

1/8 in

1/8-27

0.563 in

2MP-4FPX STR

1404-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

#4 MP X #2 FP SWIVEL

1404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 x 0.688 in

04MP-04FPS STRAIGHT

1404-04-04

1/4 in

1/4 in

1/4-18

11/16 in

BRENNAN 1/4 NPT RESTRICTOR SWIVEL 0.031

1404-04-04-R.031

1/4 in

1/4 in

1/4-18

11/16 in

#4 MP X #6 FP SWIVEL

1404-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

0.813 x 0.875 in

Brennan Adapter. zinc plated steel. 1/2 female pipe swivel 1

1404-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 MP X #4 FP SWIVEL

1404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

06MP-06FPS STRAIGHT

1404-06-06

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FPS STRAIGHT

1404-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

ADAPTER

1404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 x 7/8 in

#8 MP X #6 FP SWIVEL

1404-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08FPS STRAIGHT

1404-08-08

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 MP X #8 FP SWIVEL

1404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/4

12MP-16FPS STRAIGHT

1404-12-16

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

#16 MP X #8 FP SWIVEL

1404-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1 x 1-3/8 in

16MP-12FPS STRAIGHT

1404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/2 x 1-1/4 in

16MP-16FPS STRAIGHT

1404-16-16

1 in

1 in

1-11-1/2

1-1/2 in

ADAPTER 2045-20-16S

1404-16-20

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

#16 MP X #24 FP SWIVEL

1404-16-24

1 in

1-1/2 in

1-1/2-11-1/2 x 1-11-1/2

2-1/8 in

20MP-20FPS STRAIGHT

1404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

ADAPTER

1404-20-24

1-1/4 in

1-1/2 in

1-1/4-11-1/2, 1-1/2-11-1/2

2-1/8 in

24MP-20FPX STR

1404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

1-7/8 in

24MP-24FPS STRAIGHT

1404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 MP X #32 FP SWIVEL

1404-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (2)

Question by: Lynn H on Dec 19, 2025, 12:23 PM
What kind of threads are on each end of this adapter, and are both ends the same size?
Answer by: Customer Support on Dec 21, 2025, 8:30 AM
Both ends are 3/4-14, but they're not the same thread type. One end is a Male NPTF thread built to SAE J476 spec, and the other is a Female NPSM Swivel thread built to SAE J514. So you've got a dry-seal tapered male on one side and a swivel female on the other, which is real handy when you need some rotational flexibility at the connection point without having to fight the line into position.
Question by: Rusty W on Sep 29, 2025, 12:31 PM
Reckon this'll hold up to a steady 3000 PSI? Just wanna make sure before I order a bunch.
Answer by: Customer Support on Sep 30, 2025, 4:47 PM
Yes, sir. This adapter is rated for a maximum dynamic pressure of 3000 PSI, so it should handle that just fine.
