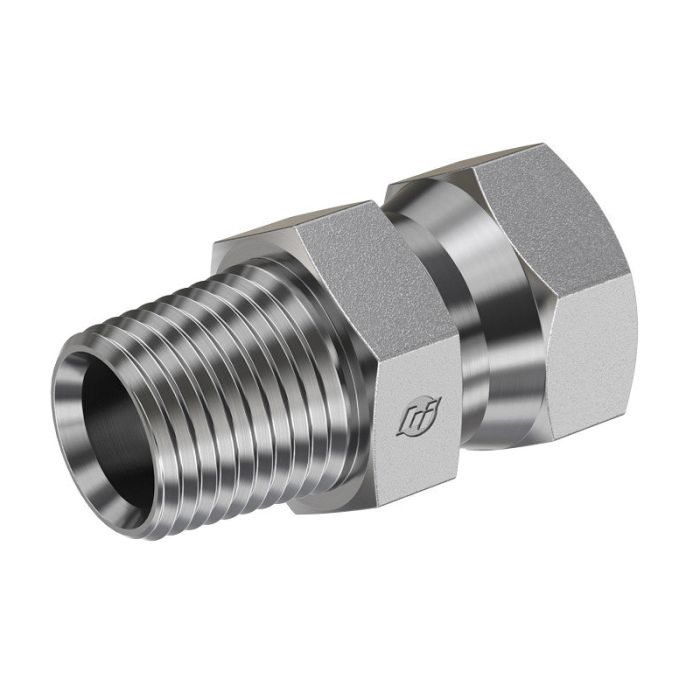

#16 MP X #8 FP SWIVEL

Description & Features

This hydraulic fitting features a robust straight steel construction, ensuring durability and reliability in demanding industrial settings. The #16 MP X #8 FP SWIVEL is designed to handle a maximum dynamic pressure of 3,000 PSI, making it suitable for high-pressure hydraulic applications. The fitting includes a Male NPTF thread (1-11-1/2) and a Female NPSM Swivel thread (1/2-14), meeting SAE J476 and SAE J514 standards, respectively. These precise specifications ensure compatibility with a wide range of hydraulic systems and components.

With an overall length of 2.160 mm and a compact design occupying just 4.084 cubic inches, this fitting is ideal for tight spaces without compromising performance. Manufactured by Brennan Industries, this product adheres to high-quality standards, providing consistent and safe operation in various industrial applications. California residents should be aware of the PROP-65 warning associated with this product.

SKU: 1404-16-08

Supplier Part Number (MPN): 1404-16-08

Alternate Part Numbers: A2045-8-16S

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
4.084 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.02 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1 x 1-3/8 in
l2 Dimensions
1.91 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Series
1404 Series
Thread 2 Drill Dimensions
0.46 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2 x 1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/4-14 Female NPT Swivel To 1/2-14 Male NPT, Straight

1404-08-12 Steel Female To Male NPT Adapter

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-1/4-11-1/2 Male NPT, Straight

1404-20-16 Steel Female To Male NPT Adapter

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-14 Male NPT, Straight

1404-12-06 Steel Female To Male NPT Adapter

3/4 in

3/8 in

3/4-14 x 3/8-18

0.88 x 1.12 in

02MP-02FPS STRAIGHT

1404-02-02

1/8 in

1/8 in

1/8-27

0.563 in

2MP-4FPX STR

1404-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

#4 MP X #2 FP SWIVEL

1404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 x 0.688 in

04MP-04FPS STRAIGHT

1404-04-04

1/4 in

1/4 in

1/4-18

11/16 in

BRENNAN 1/4 NPT RESTRICTOR SWIVEL 0.031

1404-04-04-R.031

1/4 in

1/4 in

1/4-18

11/16 in

#4 MP X #6 FP SWIVEL

1404-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

0.813 x 0.875 in

Brennan Adapter. zinc plated steel. 1/2 female pipe swivel 1

1404-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 MP X #4 FP SWIVEL

1404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

06MP-06FPS STRAIGHT

1404-06-06

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FPS STRAIGHT

1404-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

ADAPTER

1404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 x 7/8 in

#8 MP X #6 FP SWIVEL

1404-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08FPS STRAIGHT

1404-08-08

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 MP X #8 FP SWIVEL

1404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/4

12MP-12FPS STRAIGHT

1404-12-12

3/4 in

3/4 in

3/4-14

1-1/4

12MP-16FPS STRAIGHT

1404-12-16

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

16MP-12FPS STRAIGHT

1404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/2 x 1-1/4 in

16MP-16FPS STRAIGHT

1404-16-16

1 in

1 in

1-11-1/2

1-1/2 in

ADAPTER 2045-20-16S

1404-16-20

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

#16 MP X #24 FP SWIVEL

1404-16-24

1 in

1-1/2 in

1-1/2-11-1/2 x 1-11-1/2

2-1/8 in

20MP-20FPS STRAIGHT

1404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

ADAPTER

1404-20-24

1-1/4 in

1-1/2 in

1-1/4-11-1/2, 1-1/2-11-1/2

2-1/8 in

24MP-20FPX STR

1404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

1-7/8 in

24MP-24FPS STRAIGHT

1404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 MP X #32 FP SWIVEL

1404-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Lynn H on Feb 14, 2026, 10:56 AM
Will this fitting work with my existing hydraulic setup or are there any compatibility issues I should watch out for?
Answer by: Customer Support on Feb 15, 2026, 9:28 PM
This fitting includes a Male NPTF thread (1-11-1/2) and a Female NPSM Swivel thread (1/2-14), meeting SAE J476 and SAE J514 standards, respectively, which should ensure broad compatibility. Just double-check those sizes against your existing system.
