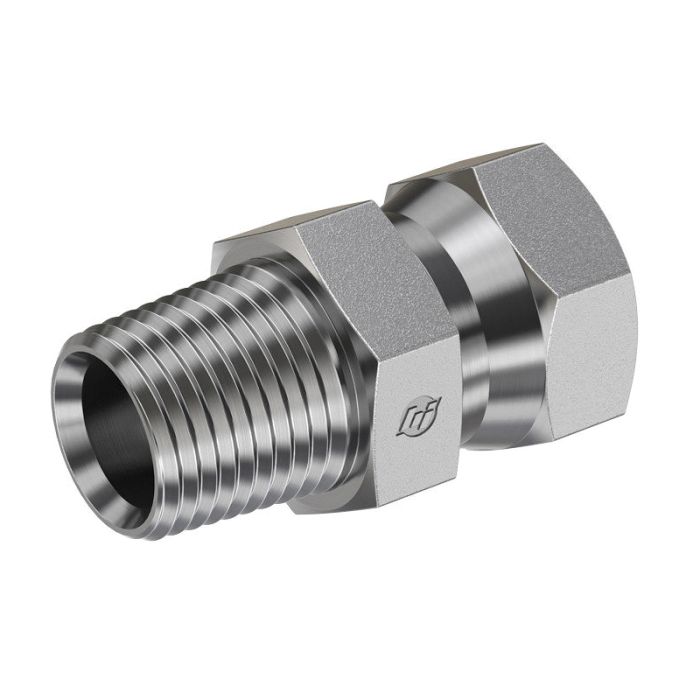

main product photo

16MP-16FPS STRAIGHT

Ask A Question

Description & Features

Built by Brennan Industries Inc the 16MP-16FPS Straight adapter is designed for high-performance industrial applications involving dynamic pressure up to 2 500 psi. With a durable construction from straight steel this product ensures longevity and robust performance in demanding environments.

Key specifications include an overall length of 2.350 mm and C Hex size of 1.500 mm. The male NPTF thread adheres to SAE J476 specifications while the female NPSM swivel thread follows SAE J514 standards. These attributes guarantee compatibility and reliability across various industrial setups.

The 16MP-16FPS Straight adapter offers precise fitting with a B1 thread drill size of 0.938 mm and B2 thread drill size of 0.78 mm. Its compact cubic inch space of 5.288 ensures efficient installation within constrained spaces.

California Residents: PROP-65 WARNING

Supplier Part Number: 1404-16-16

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
5.288 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.35 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
l2 Dimensions
2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1404 Series
Thread 2 Drill Dimensions
0.78 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2

Product Questions & Answers (3)

Question by: Glen R on Dec 12, 2025, 6:10 PM
got a 1-11-1/2 male NPTF port on one side and need a female swivel on the other. is this the straight adapter for that?
Answer by: Customer Support on Dec 14, 2025, 10:13 AM
It matches that setup. One end is a male NPTF thread in 1-11-1/2 per SAE J476, and the other end is a female NPSM swivel thread in 1-11-1/2 per SAE J514, in a straight steel straight-body adapter.
Question by: Carl R on Nov 11, 2025, 6:11 AM
Running a 1-inch NPTF male end into a swivel fitting on the female side, does the thread sizing on this Brennan adapter line up right for that?
Answer by: Customer Support on Nov 12, 2025, 6:26 PM
Both ends of this adapter are sized at 1-11/2, so a 1-inch NPTF male thread on one side and the female NPSM swivel on the other should mate up without any modification. The male end follows SAE J476 and the female swivel end is built to SAE J514, which are standard industrial specs that keep things compatible across most common hydraulic setups.
Question by: Daryl H on Oct 14, 2025, 9:01 PM
Is this fitting pretty standard as far as threads go?
Answer by: Customer Support on Oct 16, 2025, 5:59 PM
This adapter uses a male NPTF thread that meets SAE J476 specs and a female NPSM swivel thread to SAE J514 standards.
