ADAPTER 2045-20-16S

Description & Features

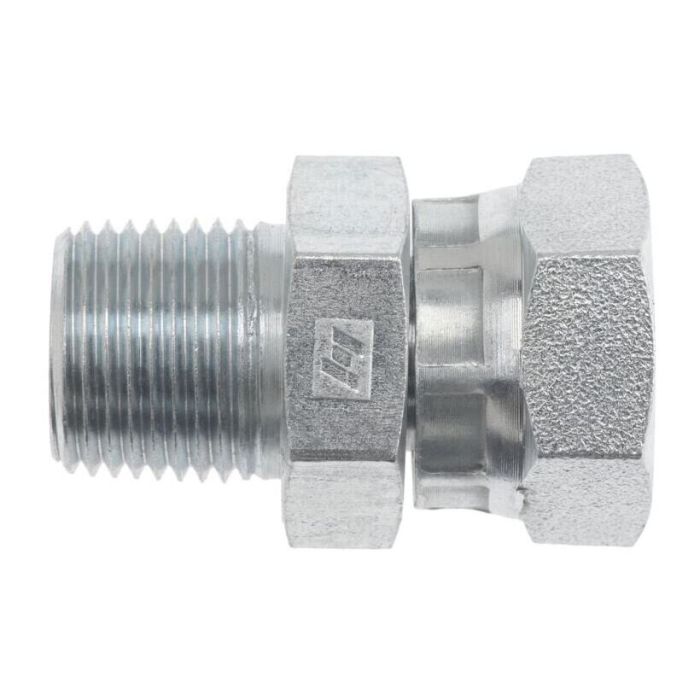

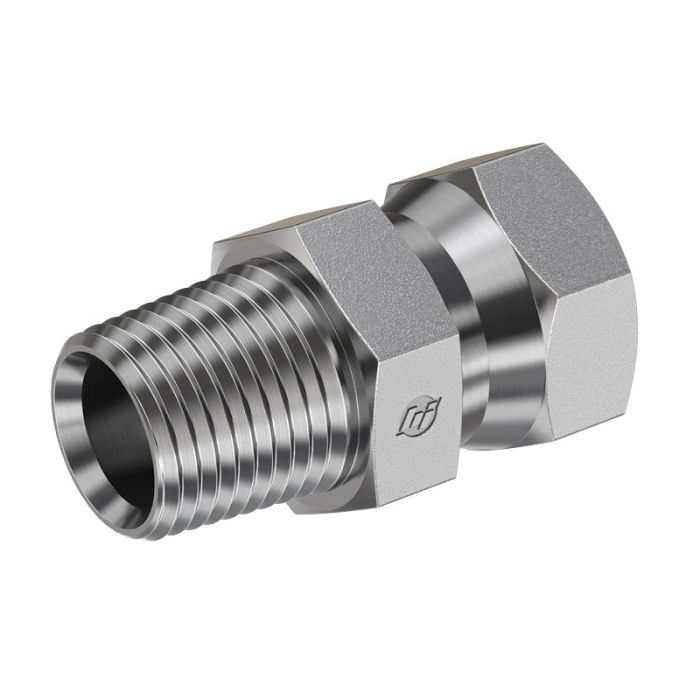

The Adapter 2045-20-16S from Brennan Industries Inc is engineered for robust industrial applications. Made from straight steel this adapter exhibits superior durability and reliability.

With an overall length of 2.470 mm and a dynamic pressure capacity of 2 000 psi it ensures efficient performance under demanding conditions. The male NPTF thread B1 size is 1-11-1/2 compliant with SAE J476 specifications while the female NPSM swivel thread B2 size is 1-1/4-11-1/2 adhering to SAE J514 standards.

It features a C Hex of 1.875 mm providing a secure and tight connection. The threading dimensions are precise with B2 drill mm at 0.94 and B1 drill mm at 0.938 facilitating seamless integration with compatible components.

This high-quality adapter is essential for maintaining optimal performance across various industrial setups ensuring reliability and longevity.

MPN: 1404-16-20

Supplier Part Number: 1404-16-20

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
8.684 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.47 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-7/8 in
l2 Dimensions
2.05 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
2500 psi
Series
1404 Series
Thread 2 Drill Dimensions
0.94 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-1/4-11-1/2 x 1-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/4-14 Female NPT Swivel To 1/2-14 Male NPT, Straight

1404-08-12 Steel Female To Male NPT Adapter

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-1/4-11-1/2 Male NPT, Straight

1404-20-16 Steel Female To Male NPT Adapter

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-14 Male NPT, Straight

1404-12-06 Steel Female To Male NPT Adapter

3/4 in

3/8 in

3/4-14 x 3/8-18

0.88 x 1.12 in

02MP-02FPS STRAIGHT

1404-02-02

1/8 in

1/8 in

1/8-27

0.563 in

2MP-4FPX STR

1404-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

#4 MP X #2 FP SWIVEL

1404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 x 0.688 in

04MP-04FPS STRAIGHT

1404-04-04

1/4 in

1/4 in

1/4-18

11/16 in

BRENNAN 1/4 NPT RESTRICTOR SWIVEL 0.031

1404-04-04-R.031

1/4 in

1/4 in

1/4-18

11/16 in

#4 MP X #6 FP SWIVEL

1404-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

0.813 x 0.875 in

Brennan Adapter. zinc plated steel. 1/2 female pipe swivel 1

1404-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 MP X #4 FP SWIVEL

1404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

06MP-06FPS STRAIGHT

1404-06-06

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FPS STRAIGHT

1404-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

ADAPTER

1404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 x 7/8 in

#8 MP X #6 FP SWIVEL

1404-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08FPS STRAIGHT

1404-08-08

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 MP X #8 FP SWIVEL

1404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/4

12MP-12FPS STRAIGHT

1404-12-12

3/4 in

3/4 in

3/4-14

1-1/4

12MP-16FPS STRAIGHT

1404-12-16

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

#16 MP X #8 FP SWIVEL

1404-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1 x 1-3/8 in

16MP-12FPS STRAIGHT

1404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/2 x 1-1/4 in

16MP-16FPS STRAIGHT

1404-16-16

1 in

1 in

1-11-1/2

1-1/2 in

#16 MP X #24 FP SWIVEL

1404-16-24

1 in

1-1/2 in

1-1/2-11-1/2 x 1-11-1/2

2-1/8 in

20MP-20FPS STRAIGHT

1404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

ADAPTER

1404-20-24

1-1/4 in

1-1/2 in

1-1/4-11-1/2, 1-1/2-11-1/2

2-1/8 in

24MP-20FPX STR

1404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

1-7/8 in

24MP-24FPS STRAIGHT

1404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 MP X #32 FP SWIVEL

1404-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Hubert T on Jul 20, 2025, 11:04 AM
trying to swap out an old fitting, what threads are on each end of this adapter?
Answer by: Customer Support on Jul 21, 2025, 7:19 PM
For fitment, it has a male NPTF thread on the B1 end in size 1-11-1/2 (SAE J476), and a female NPSM swivel thread on the B2 end in size 1-1/4-11-1/2 (SAE J514).
