#16 MP X #24 FP SWIVEL

Description & Features

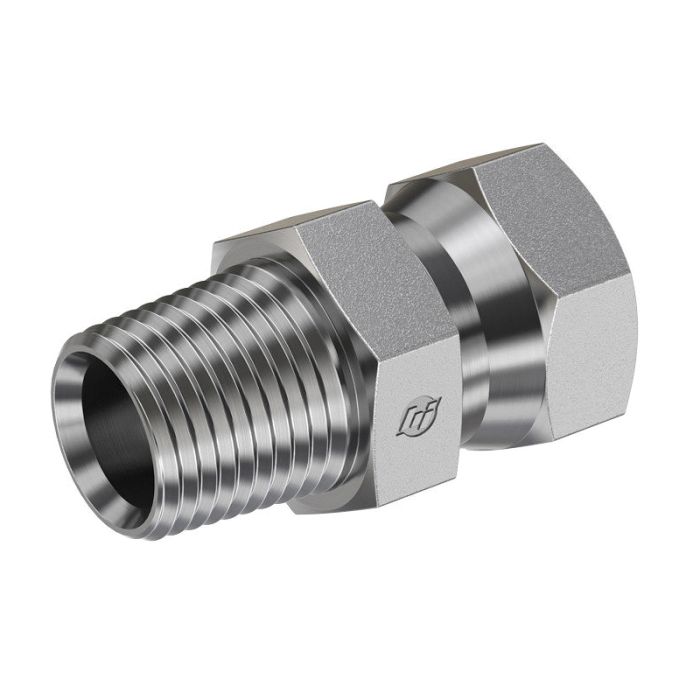

This straight steel swivel adapter features a #16 male NPTF end and a #24 female NPSM swivel end. The #16 MP X #24 FP SWIVEL is part of the 1404 series and manufactured by Brennan Industries.

It is constructed from straight steel. The B1 male NPTF thread measures 1-11-1/2 with a drill size of 0.938 mm, conforming to SAE J476 specifications. The B2 female NPSM swivel thread measures 1-1/2-11-1/2 with a drill size of 1.25 mm, conforming to SAE J514 standards. The adapter is rated to a maximum dynamic pressure of 2,000 PSI.

SKU: 1404-16-24

Supplier Part Number (MPN): 1404-16-24

Alternate Part Numbers: A2045-24-16S

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
11.515 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.55 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-1/8 in
l2 Dimensions
2.17 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
1404 Series
Thread 2 Drill Dimensions
1.25 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-1/2-11-1/2 x 1-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/4-14 Female NPT Swivel To 1/2-14 Male NPT, Straight

1404-08-12 Steel Female To Male NPT Adapter

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-1/4-11-1/2 Male NPT, Straight

1404-20-16 Steel Female To Male NPT Adapter

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-14 Male NPT, Straight

1404-12-06 Steel Female To Male NPT Adapter

3/4 in

3/8 in

3/4-14 x 3/8-18

0.88 x 1.12 in

02MP-02FPS STRAIGHT

1404-02-02

1/8 in

1/8 in

1/8-27

0.563 in

2MP-4FPX STR

1404-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

#4 MP X #2 FP SWIVEL

1404-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 x 0.688 in

04MP-04FPS STRAIGHT

1404-04-04

1/4 in

1/4 in

1/4-18

11/16 in

BRENNAN 1/4 NPT RESTRICTOR SWIVEL 0.031

1404-04-04-R.031

1/4 in

1/4 in

1/4-18

11/16 in

#4 MP X #6 FP SWIVEL

1404-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

0.813 x 0.875 in

Brennan Adapter. zinc plated steel. 1/2 female pipe swivel 1

1404-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 MP X #4 FP SWIVEL

1404-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

06MP-06FPS STRAIGHT

1404-06-06

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FPS STRAIGHT

1404-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

ADAPTER

1404-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 x 7/8 in

#8 MP X #6 FP SWIVEL

1404-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08FPS STRAIGHT

1404-08-08

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 MP X #8 FP SWIVEL

1404-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/4

12MP-12FPS STRAIGHT

1404-12-12

3/4 in

3/4 in

3/4-14

1-1/4

12MP-16FPS STRAIGHT

1404-12-16

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

#16 MP X #8 FP SWIVEL

1404-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1 x 1-3/8 in

16MP-12FPS STRAIGHT

1404-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/2 x 1-1/4 in

16MP-16FPS STRAIGHT

1404-16-16

1 in

1 in

1-11-1/2

1-1/2 in

ADAPTER 2045-20-16S

1404-16-20

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

20MP-20FPS STRAIGHT

1404-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

ADAPTER

1404-20-24

1-1/4 in

1-1/2 in

1-1/4-11-1/2, 1-1/2-11-1/2

2-1/8 in

24MP-20FPX STR

1404-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

1-7/8 in

24MP-24FPS STRAIGHT

1404-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 MP X #32 FP SWIVEL

1404-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Wes S on Jul 21, 2025, 9:29 AM
What’s the pressure rating on this swivel fitting? Gotta make sure it can handle what I’m throwin' at it.
Answer by: Customer Support on Jul 22, 2025, 4:22 PM
This adapter is rated for a maximum dynamic pressure of 2,000 PSI.
