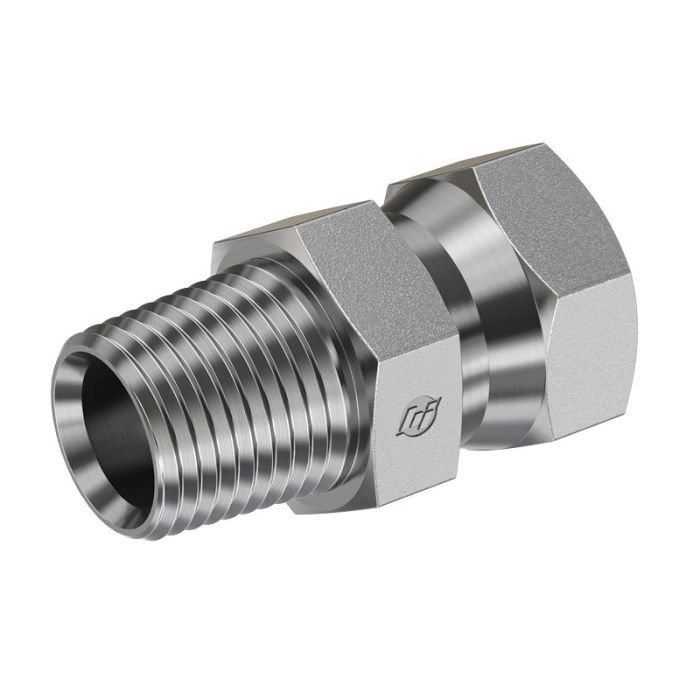

main product photo

24MP-20FPX STR

Ask A Question

Description & Features

Manufactured by Brennan Industries Inc the 24MP-20FPX STR is designed to meet high industry standards with its precision-engineered components. Built from straight steel this product ensures durability and reliability under maximum dynamic pressure of up to 2 000 Psi.

The overall length of the product is 2.540 mm and it features a C hex of 1.875 mm. The male NPTF thread specification adheres to SAE J476 standards while the female NPSM swivel thread follows SAE J514 specifications providing compatibility and versatility in various industrial applications.

California residents should note the Prop-65 warning associated with this product. Additionally the cubic inch space dimensions are 11.47 in which is essential for storage and installation considerations.

With precise thread sizes of 1-1/2-11-1/2 for male NPTF and 1-1/4-11-1/2 for female NPSM swivel the 24MP-20FPX STR serves as a reliable component in complex assemblies.

MPN: 1404-24-20

Supplier Part Number: 1404-24-20

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
11.47 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.54 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-7/8 in
l2 Dimensions
2.12 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
2500 psi
Series
1404 Series
Thread 2 Drill Dimensions
1.01 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/4-11-1/2, 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Tammy J on Sep 10, 2025, 11:10 AM
trying to swap one of these in, what threads are on each end of the 24MP-20FPX STR?
Answer by: Customer Support on Sep 11, 2025, 2:19 PM
On one side it has a 1-1/2-11-1/2 male NPTF thread built to SAE J476, and the other side is a 1-1/4-11-1/2 female NPSM swivel thread per SAE J514.
