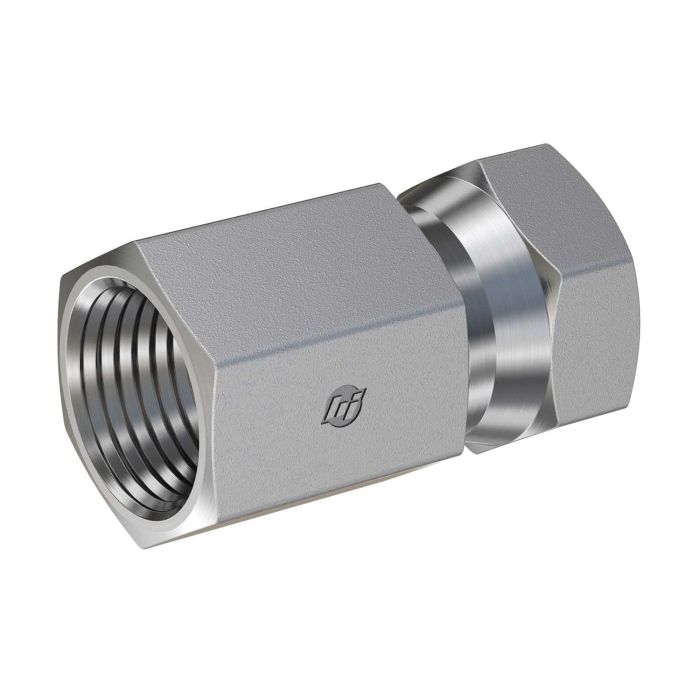

main product photo

02FP-02FPS STRAIGHT

Ask A Question

Description & Features

The 02FP-02FPS Straight adapter by Brennan Industries Inc is crafted from high-quality straight steel ensuring durability and reliable performance. It features a maximum dynamic pressure rating of 6 000 PSI making it suitable for high-pressure applications.

With an overall length of 1.020 mm and a secondary length of 0.880 mm this adapter is designed for precise industrial fit. The adapter includes a female NPTF thread type B1 conforming to SAE J476 specifications and a female NPSM swivel thread type B2 adhering to SAE J514 standards. Each thread size is 1/8-27 facilitating compatibility with various industrial setups.

The hex size is 0.562 mm adding to its versatile installation options. Note that California residents should be aware of the PROP-65 warning associated with this product.

Supplier Part Number: 1405-02-02

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
FNPT, NPSM Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPSM Swivel
Cubic Inch Space L x W x H Dimensions
0.322 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.02 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.563 in
l2 Dimensions
0.88 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1405 Series
Thread 2 Drill Dimensions
0.11 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/8-27

Product Questions & Answers (3)

Question by: Bobby S on Jun 10, 2025, 6:03 AM
trying to swap a fitting out, is this one female NPTF on one end and a female NPSM swivel on the other, both 1/8-27?
Answer by: Customer Support on Jun 11, 2025, 11:50 AM
On the thread side, it is a female NPTF (SAE J476) on B1 and a female NPSM swivel (SAE J514) on B2, and both ends are 1/8-27.
Question by: Kent S on Apr 1, 2026, 8:27 AM
rated at 6,000 PSI -- that hold up on a system running pretty close to that ceiling all day long?
Answer by: Customer Support on Apr 2, 2026, 9:29 AM
6,000 PSI is the maximum dynamic pressure rating on this adapter, so running at or near that figure continuously puts you right at the edge of its design limit. For systems that regularly push close to that ceiling, staying a bit below that max is the safer call. Intermittent spikes up to 6,000 PSI are what this rating is built to handle, not sustained operation pinned at the top of that range.
Question by: Vince T on Aug 3, 2025, 3:38 PM
So this thing's made of steel, right? How long is it overall?
Answer by: Customer Support on Aug 5, 2025, 6:00 AM
it's straight steel. The overall length on this Brennan 02FP-02FPS Straight adapter is 1.020 mm.
