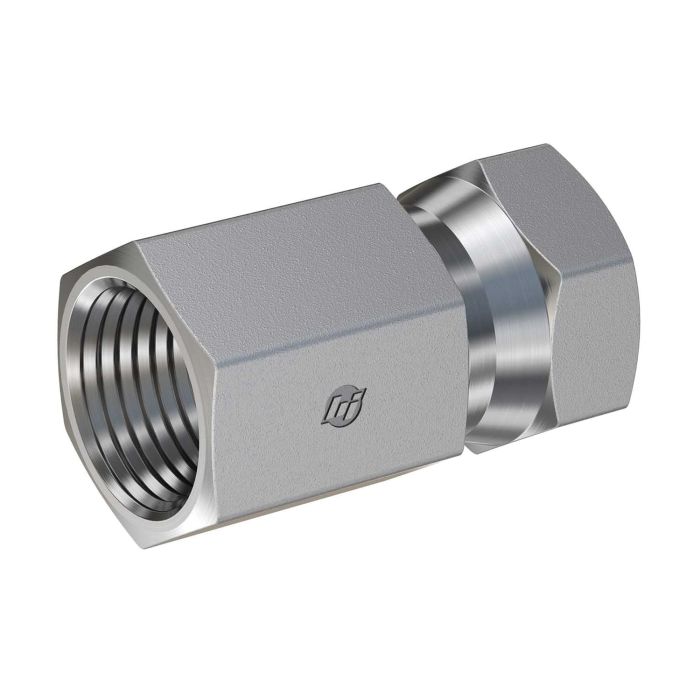

main product photo

#2 FP X #4 FP SWIVEL

Ask A Question

Description & Features

Manufactured from straight steel, the #2 FP x #4 FP Swivel is a straight hydraulic adapter rated for dynamic pressures up to 6,000 PSI. It connects a 1/8-27 Female NPTF thread (conforming to SAE J476) on one end to a 1/4-18 Female NPSM Swivel thread (conforming to SAE J514) on the other, making it well suited for applications where rotational flexibility at the swivel end is needed to reduce stress on connected lines.

Part of the Brennan Industries Series 1405, this fitting is a reliable choice for hydraulic systems requiring a transition between NPTF and NPSM swivel connections. The swivel end allows the fitting to rotate during assembly or in service, helping to prevent line twist and mechanical strain at the connection point.

SKU: 1405-02-04

Supplier Part Number (MPN): 1405-02-04

Alternate Part Numbers: A2046-4-2S

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Size 2
1/4 in
Connection Type
FNPT, NPSM Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPSM Swivel
Cubic Inch Space L x W x H Dimensions
0.611 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.29 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 in
l2 Dimensions
1.1 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1405 Series
Thread 2 Drill Dimensions
0.22 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/4-18 x 1/8-27

Product Questions & Answers (1)

Question by: Dale W on Jul 26, 2025, 1:25 PM
Just wanna make sure, this here fitting will go from a 1/8 NPT to a 1/4 NPSM swivel, right?
Answer by: Customer Support on Jul 27, 2025, 3:30 PM
That's correct. This fitting adapts from a 1/8-27 Female NPTF thread to a 1/4-18 Female NPSM Swivel thread.
