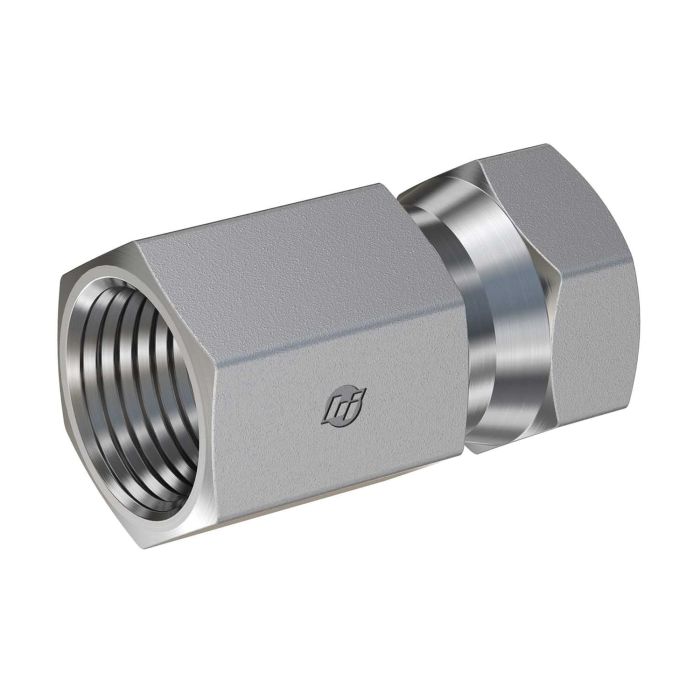

main product photo

#4 FP X #2 FP SWIVEL

Ask A Question

Description & Features

Constructed from high-quality straight steel, this #4 FP X #2 FP SWIVEL fitting is designed for high-performance hydraulic applications. It features a robust pressure rating of up to 6,000 psi, making it suitable for demanding industrial environments. The fitting incorporates a female NPTF connection type on one end, adhering to SAE J476 standards, and a female NPSM swivel on the other, meeting SAE J514 specifications. These specifications ensure compatibility and reliability in various hydraulic systems.

With an overall length of 1.330 mm and a compact design, the fitting offers efficient space utilization in complex assemblies. The Brennan Series 1405 fitting is an ideal choice for professionals seeking durable components that meet stringent industry standards. Please note the PROP-65 warning for California residents.

SKU: 1405-04-02

Supplier Part Number (MPN): 1405-04-02

Alternate Part Numbers: A2046-2-4S

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
FNPT, NPSM Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPSM Swivel
Cubic Inch Space L x W x H Dimensions
0.63 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.33 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.563 x 0.688 in
l2 Dimensions
1.19 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1405 Series
Thread 2 Drill Dimensions
0.11 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18 x 1/8-27

Product Questions & Answers (1)

Question by: Rod S on Sep 3, 2025, 7:10 PM
Will this fitting work with standard hydraulic setups, or are there special adapters needed?
Answer by: Customer Support on Sep 5, 2025, 10:39 AM
This fitting is designed to meet SAE J476 and SAE J514 specifications for NPTF and NPSM connections, respectively. That should ensure compatibility with a variety of standard hydraulic systems using those thread types.
