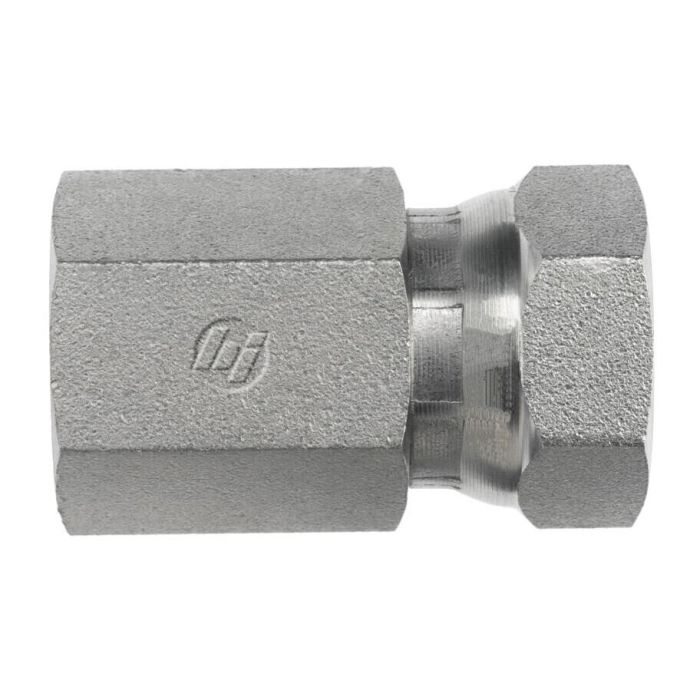

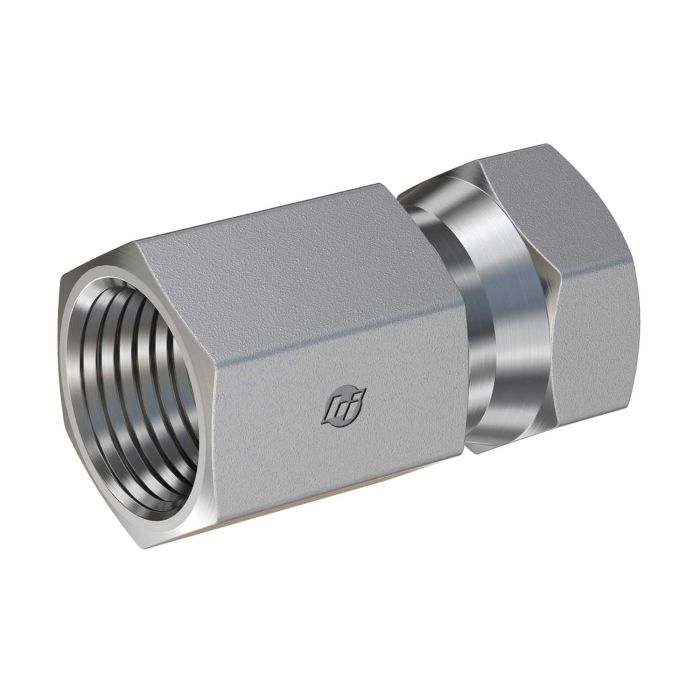

#4 FP X #8 FP SWIVEL

Description & Features

This straight steel #4 FP X #8 FP SWIVEL fitting features a 1/4-18 FEMALE NPTF thread on one end and a 1/2-14 FEMALE NPSM SWIVEL thread on the other, manufactured to SAE J476 and SAE J514 specifications. With a maximum dynamic pressure of 5,000 PSI, this fitting is suitable for demanding hydraulic applications.

The overall length of this straight fitting is 1.6 inches, with a cubic inch space of 1.6. It is part of the Brennan 1405 series and is designed to provide a secure and reliable connection in hydraulic systems.

SKU: 1405-04-08

Supplier Part Number (MPN): 1405-04-08

Alternate Part Numbers: A2046-8-4S

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/2 in
Connection Type
FNPT, NPSM Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPSM Swivel
Cubic Inch Space L x W x H Dimensions
1.6 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.6 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1 x 1 in
l2 Dimensions
1.32 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1405 Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/2-14 x 1/4-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 1-11-1/2 Female NPT Swivel To 3/4-14 Female NPT, Straight

1405-12-16 Steel Female NPT Coupling

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

Steel Adapter, 1/2-14 Female NPT Swivel To 3/8-18 Female NPT, Straight

1405-06-08 Steel Female NPT Coupling

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

02FP-02FPS STRAIGHT

1405-02-02

1/8 in

1/8 in

1/8-27

0.563 in

#2 FP X #4 FP SWIVEL

1405-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

#4 FP X #2 FP SWIVEL

1405-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 x 0.688 in

04FP-04FPS STRAIGHT

1405-04-04

1/4 in

1/4 in

1/4-18

11/16 in

BRENNAN INDUSTRIES ADAPTER 3/8 FEMALE PIPE SWIVEL X 1/4 FEMA

1405-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

11/16 x 7/8 in

#6 FP X #4 FP SWIVEL

1405-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 x 7/8 in

06FP-06FPS STRAIGHT

1405-06-06

3/8 in

3/8 in

3/8-18

7/8 in

#8 FP (RIGID) X #4 FP (SWIVEL)

1405-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

0.69 x 1 in

#8 FP X #6 FP SWIVEL

1405-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

#8 FP X #8 FP SWIVEL

1405-08-08

1/2 in

1/2 in

1/2-14

1 x 1 in

#8 FP X #12 FP SWIVEL

1405-08-12

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

12FP-08FPS STRAIGHT

1405-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/4 x 1 in

12FP-12FPS STRAIGHT

1405-12-12

3/4 in

3/4 in

3/4-14

1-1/4

ADAPTER

1405-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/2 x 1-1/4 in

#16 FP X #16 FP SWIVEL

1405-16-16

1 in

1 in

1-11-1/2

1-1/2 in

20FP-20FPS STRAIGHT

1405-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

#24 FP X #24 FP SWIVEL

1405-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 FP X #32 FP SWIVEL

1405-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Dwayne C on Feb 12, 2026, 7:28 AM
Will this fitting work with standard NPT fittings, or does it need special adapters?
Answer by: Customer Support on Feb 14, 2026, 6:52 AM
This fitting has a 1/4-18 FEMALE NPTF thread on one side, which is a standard NPT fitting type. The other side features a 1/2-14 FEMALE NPSM SWIVEL thread. You'll need to ensure your connecting components are compatible with these thread types.
