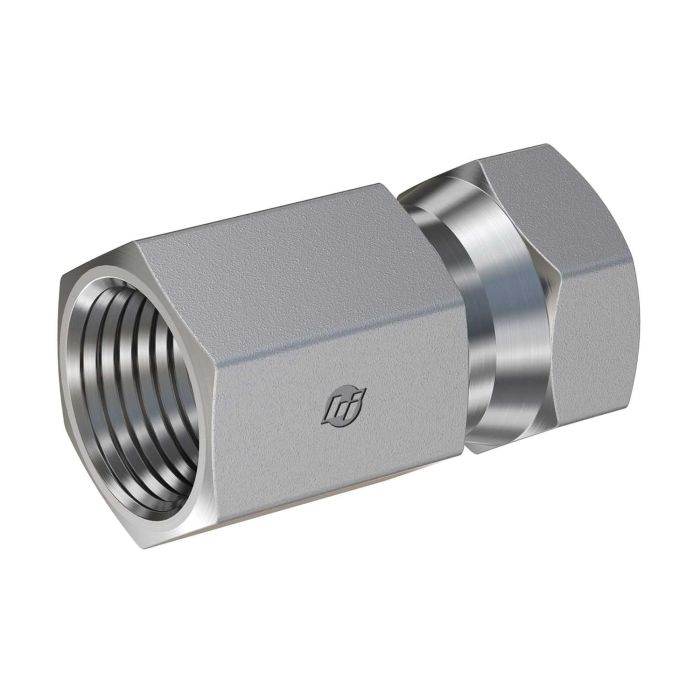

#8 FP X #6 FP SWIVEL

Description & Features

This #8 FP X #6 FP SWIVEL, part number 1405-08-06, is a straight steel fitting designed for hydraulic applications requiring a secure and adaptable connection. It features a female NPTF thread (1/2-14) and a female NPSM swivel thread (3/8-18), adhering to SAE J476 and SAE J514 specifications, respectively.

With a maximum dynamic pressure rating of 5,000 PSI, this fitting ensures reliable performance in demanding environments. The 0.875" C Hex facilitates easy installation.

SKU: 1405-08-06

Supplier Part Number (MPN): 1405-08-06

Alternate Part Numbers: A2046-6-8S, C1DU79

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
FNPT, NPSM Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPSM Swivel
Cubic Inch Space L x W x H Dimensions
1.66 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.66 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
l2 Dimensions
1.45 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1405 Series
Thread 2 Drill Dimensions
0.34 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 1-11-1/2 Female NPT Swivel To 3/4-14 Female NPT, Straight

1405-12-16 Steel Female NPT Coupling

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

Steel Adapter, 1/2-14 Female NPT Swivel To 3/8-18 Female NPT, Straight

1405-06-08 Steel Female NPT Coupling

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

02FP-02FPS STRAIGHT

1405-02-02

1/8 in

1/8 in

1/8-27

0.563 in

#2 FP X #4 FP SWIVEL

1405-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

#4 FP X #2 FP SWIVEL

1405-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 x 0.688 in

04FP-04FPS STRAIGHT

1405-04-04

1/4 in

1/4 in

1/4-18

11/16 in

BRENNAN INDUSTRIES ADAPTER 3/8 FEMALE PIPE SWIVEL X 1/4 FEMA

1405-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

11/16 x 7/8 in

#4 FP X #8 FP SWIVEL

1405-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 FP X #4 FP SWIVEL

1405-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 x 7/8 in

06FP-06FPS STRAIGHT

1405-06-06

3/8 in

3/8 in

3/8-18

7/8 in

#8 FP (RIGID) X #4 FP (SWIVEL)

1405-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

0.69 x 1 in

#8 FP X #8 FP SWIVEL

1405-08-08

1/2 in

1/2 in

1/2-14

1 x 1 in

#8 FP X #12 FP SWIVEL

1405-08-12

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

12FP-08FPS STRAIGHT

1405-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/4 x 1 in

12FP-12FPS STRAIGHT

1405-12-12

3/4 in

3/4 in

3/4-14

1-1/4

ADAPTER

1405-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/2 x 1-1/4 in

#16 FP X #16 FP SWIVEL

1405-16-16

1 in

1 in

1-11-1/2

1-1/2 in

20FP-20FPS STRAIGHT

1405-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

#24 FP X #24 FP SWIVEL

1405-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 FP X #32 FP SWIVEL

1405-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Curt S on Jul 11, 2025, 9:36 PM
Reckon this swivel fitting can handle a steady 5,000 PSI?
Answer by: Customer Support on Jul 13, 2025, 6:22 AM
This #8 FP X #6 FP swivel is rated to a maximum dynamic pressure of 5,000 PSI, so it should work well for your application.
