08FP-08FPS Straight Stnls

Ask A Question

Description & Features

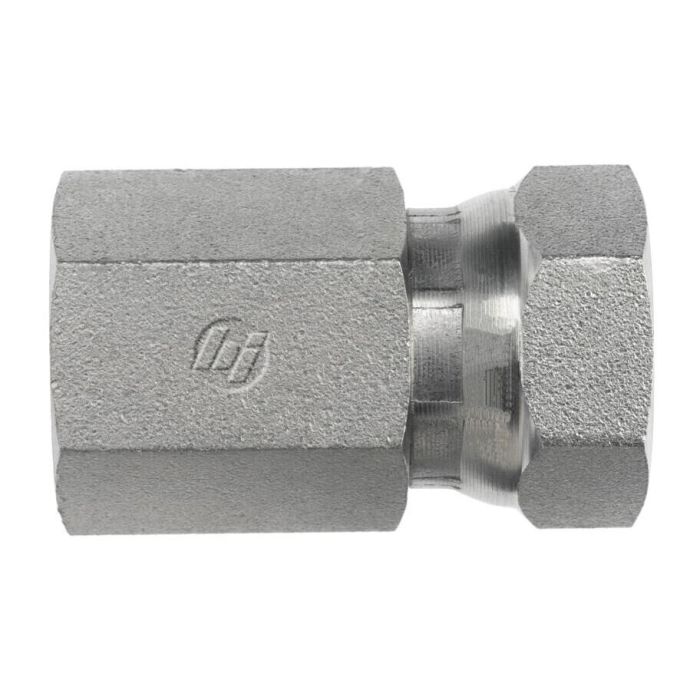

Constructed from stainless steel, the 08FP-08FPS Straight Stnls is a straight hydraulic fitting rated for dynamic pressures up to 5,000 PSI. It connects a 1/2-14 Female Nptf port (conforming to SAE J476) to a 1/2-14 Female Npsm Swivel port (conforming to SAE J514), making it well-suited for inline hydraulic connections where a fixed-to-swivel interface is required.

Part of Brennan Industries' Series 1405, this fitting has an overall length of 1.840 inches with a hex dimension of 1.000 inch, offering a compact profile for installations where space is limited. The stainless steel construction provides resistance to corrosion, supporting use in demanding industrial environments where carbon steel fittings may be unsuitable.

SKU: 1405-08-08-SS

Supplier Part Number (MPN): 1405-08-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
1.84 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.84 in L
Fitting Type
Adapter
Hex Size
1 x 1 in
l2 Dimensions
1.56 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
1405 Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Glen F on Dec 31, 2025, 7:08 PM
Reckon this'll hold up okay outside? We use a good bit of stainless 'round here on account of the weather.
Answer by: Customer Support on Jan 2, 2026, 12:19 PM
Stainless steel construction does offer better corrosion resistance compared to carbon steel fittings. It's a good choice for demanding industrial environments.
