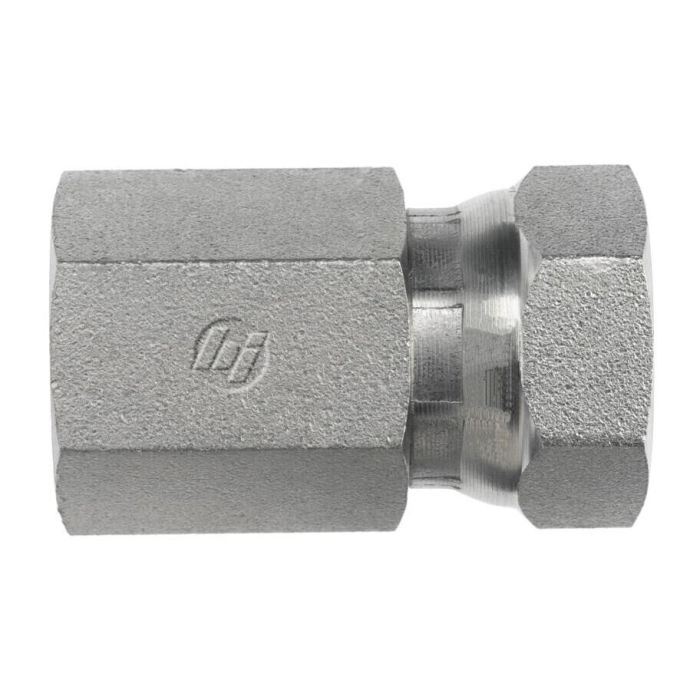

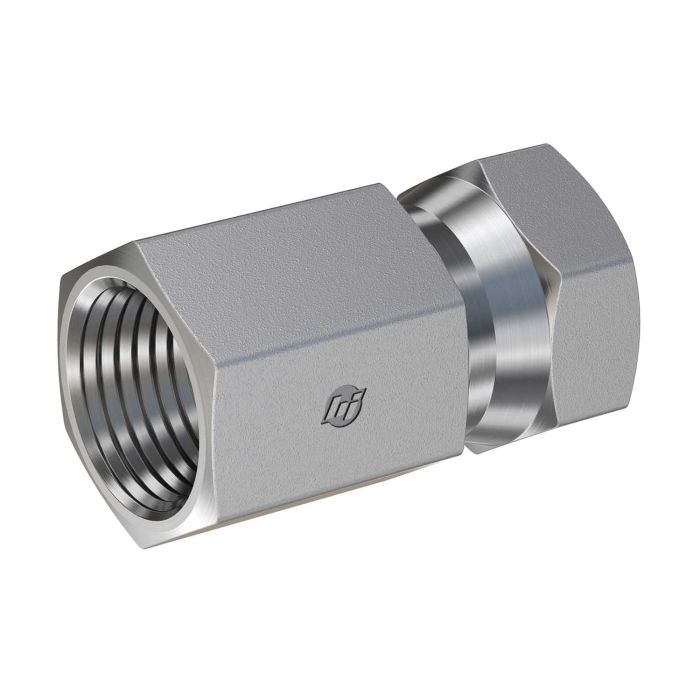

#8 FP X #8 FP SWIVEL

Description & Features

This high-quality connector is designed to meet SAE J476 and SAE J514 standards ensuring reliable and consistent performance. Manufactured from straight steel it has an overall length of 1.840 mm and a maximum dynamic pressure rating of 5 000 psi making it suitable for demanding applications.

The thread sizes for this connector include a female NPTF thread of 1/2-14 on one end and a female NPSM swivel thread of 1/2-14 on the other. The thread drill sizes are 0.531 mm for Thread B1 and 0.440 mm for Thread B2 emphasizing engineering precision. The C Hex size is 1.000 mm providing secure and stable installation.

Designed by Brennan Industries Inc this connector is part of their 1405 series known for durability and reliability. The Prop-65 warning is applicable for California residents. Ensure compatibility with your equipment by verifying the specific thread specifications: female NPTF and female NPSM swivel.

Supplier Part Number: 1405-08-08

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, NPSM Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPSM Swivel
Cubic Inch Space L x W x H Dimensions
1.84 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.84 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1 x 1 in
l2 Dimensions
1.56 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1405 Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 1-11-1/2 Female NPT Swivel To 3/4-14 Female NPT, Straight

1405-12-16 Steel Female NPT Coupling

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

Steel Adapter, 1/2-14 Female NPT Swivel To 3/8-18 Female NPT, Straight

1405-06-08 Steel Female NPT Coupling

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

02FP-02FPS STRAIGHT

1405-02-02

1/8 in

1/8 in

1/8-27

0.563 in

#2 FP X #4 FP SWIVEL

1405-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

#4 FP X #2 FP SWIVEL

1405-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 x 0.688 in

04FP-04FPS STRAIGHT

1405-04-04

1/4 in

1/4 in

1/4-18

11/16 in

BRENNAN INDUSTRIES ADAPTER 3/8 FEMALE PIPE SWIVEL X 1/4 FEMA

1405-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

11/16 x 7/8 in

#4 FP X #8 FP SWIVEL

1405-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 FP X #4 FP SWIVEL

1405-06-04

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 x 7/8 in

06FP-06FPS STRAIGHT

1405-06-06

3/8 in

3/8 in

3/8-18

7/8 in

#8 FP (RIGID) X #4 FP (SWIVEL)

1405-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

0.69 x 1 in

#8 FP X #6 FP SWIVEL

1405-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

#8 FP X #12 FP SWIVEL

1405-08-12

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

12FP-08FPS STRAIGHT

1405-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/4 x 1 in

12FP-12FPS STRAIGHT

1405-12-12

3/4 in

3/4 in

3/4-14

1-1/4

ADAPTER

1405-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/2 x 1-1/4 in

#16 FP X #16 FP SWIVEL

1405-16-16

1 in

1 in

1-11-1/2

1-1/2 in

20FP-20FPS STRAIGHT

1405-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

#24 FP X #24 FP SWIVEL

1405-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 FP X #32 FP SWIVEL

1405-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (2)

Question by: Janice M on Sep 5, 2025, 1:05 PM
Hey, just want to make sure this swivel fitting will actually fit my setup. It’s a 1/2-14 NPTF on one side and 1/2-14 NPSM swivel on the other, right?
Answer by: Customer Support on Sep 6, 2025, 8:16 PM
That's correct. This connector has a female NPTF thread of 1/2-14 on one end, conforming to SAE J476. The other end features a female NPSM swivel thread, also 1/2-14, meeting SAE J514 standards.
Question by: Debbie H on Feb 27, 2026, 4:04 PM
got a #8 female pipe thread on one side and need the other end to swivel, is that what this fitting is?
Answer by: Customer Support on Feb 28, 2026, 7:36 PM
Function-wise, it is a straight steel connector with a #8 female NPTF 1/2-14 thread on one end and a #8 female NPSM swivel 1/2-14 thread on the other.
