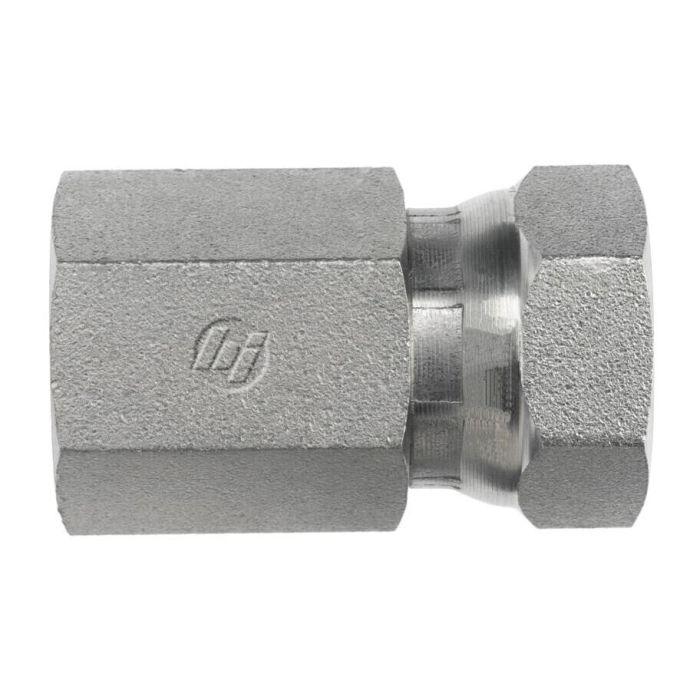

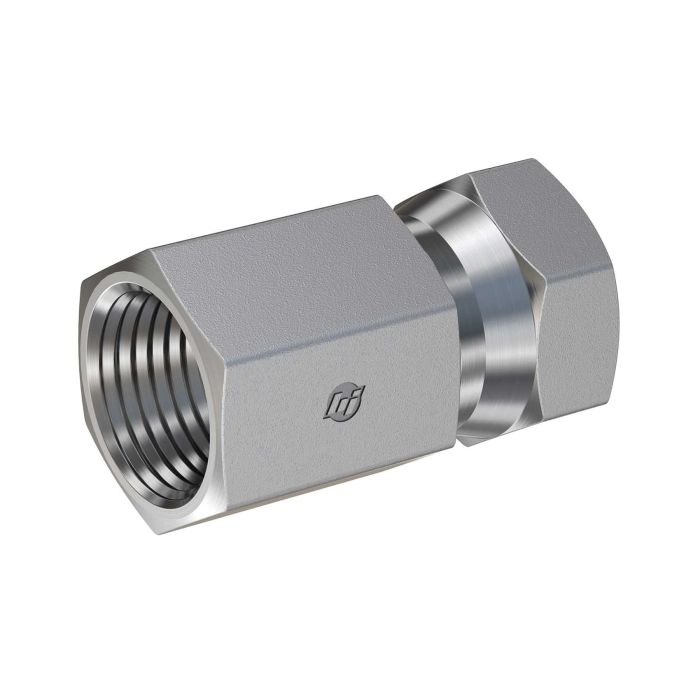

20FP-20FPS STRAIGHT

Description & Features

The 20FP-20FPS STRAIGHT adapter from Brennan Industries Inc. exemplifies high durability and reliability. Constructed from high-quality straight steel it supports a maximum dynamic pressure of 2 000 PSI guaranteeing robust performance in demanding industrial applications.

Featuring female NPTF and NPSM swivel threads this adapter adheres to SAE J476 and SAE J514 specifications ensuring compatibility and precision. With an overall length of 2.400 mm and a C Hex of 1.875 mm it is designed to meet specific industry standards.

The compact cubic inch space of 8.438 makes it suitable for environments with space constraints. Compliant with California Prop-65 it maintains safety and regulatory standards.

Supplier Part Number: 1405-20-20

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1405-20-20	Product Weight 0.88 lbs

Product Questions & Answers (2)

Question by: Eddie H on Dec 4, 2025, 1:19 PM

Does this adapter top out at 2,000 PSI or is that just a recommended ceiling for dynamic pressure?

Answer by: Customer Support on Dec 5, 2025, 9:42 PM

2,000 PSI is the rated maximum dynamic pressure for this adapter. That figure applies to working pressure under active flow conditions, not a soft recommendation. As long as your system stays at or below that threshold, you're running within spec for this Brennan 1405-series piece.

Question by: Lee H on May 23, 2025, 5:34 PM

got a 1-1/4-11-1/2 female NPTF on one side and need to go over to a swivel, is that what this adapter’s for

Answer by: Customer Support on May 25, 2025, 6:00 AM

For tying those two thread styles together, it matches up a female NPTF (SAE J476) on one end to a female NPSM swivel (SAE J514) on the other, both in 1-1/4-11-1/2.
