Din X F Din Swivel Branch Tee

Description & Features

This Adaptall steel tee fitting features a DIN tube connection on all three ends. Two ends are male M36 X 2.0, size L28, and the third end is female M36 X 2.0, size L28. Use this Din X F Din Swivel Branch Tee to connect three lines.

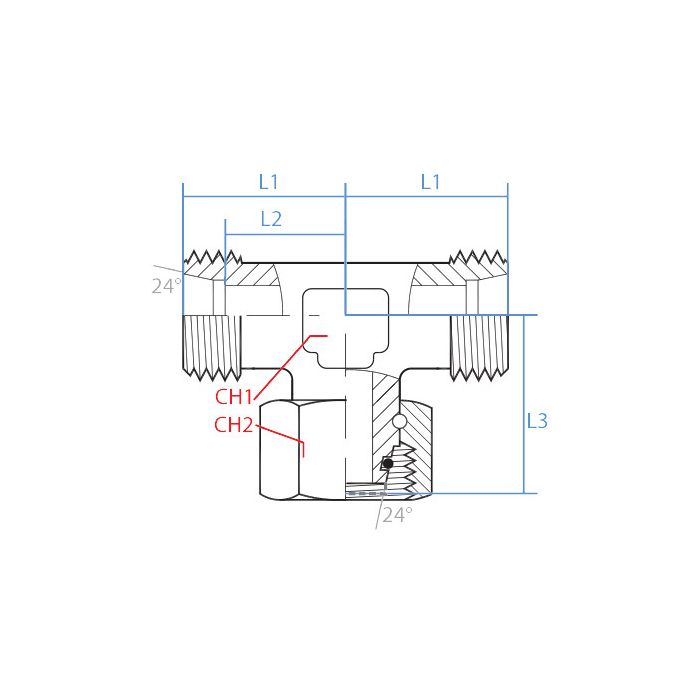

The Adaptall Ch1 width is 37mm, Adaptall Ch2 width is 46mm, Adaptall L1 length is 38mm, Adaptall L2 length is 30.5mm, and Adaptall L3 length is 41.5mm.

SKU: 5387L-28

Supplier Part Number (MPN): 5387L-28

Specifications

Brand adapt-all	Connection Size 1 L28	Connection Size 3 L28	Connection Type Female Metric, Female Metric Swivel	Connection Type 1 Female Metric DIN 24 deg Tube Swivel	Connection Type 2 Female Metric DIN 24 deg Tube	Connection Type 3 Female Metric DIN 24 deg Tube Swivel	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 76 mm L	Finish Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	Series 5387 Series	Thread Size M36x2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
5387L-06	6 mm	6 mm		M12x1.5
5387L-10		10 mm	S10	M16x1.5
5387L-12	L12	12 mm		M18x1.5	17 x 22 mm
5387L-15	L15	15 mm	L15	M22x1.5	19 x 27 mm
5387L-18	18 mm	18 mm	18L	M26x1.5
5387L-22	L22	22 mm	L22	M30x2

Product Questions & Answers (3)

Question by: Carl J on Oct 15, 2025, 7:33 AM

What kinda material is this tee made outta? Steel, right?

Answer by: Customer Support on Oct 17, 2025, 8:54 AM

That's correct, this tee fitting is made from steel.

Question by: Cody P on Jul 13, 2025, 4:13 PM

all three ends on this fitting are DIN tube type -- does that mean I can't mix in any NPT or JIC lines on the same tee?

Answer by: Customer Support on Jul 14, 2025, 5:24 PM

Correct. Every port on this tee is DIN tube, M36 X 2.0, size L28. Two of the ends are male and one is female, but all three are DIN only. If your system has NPT or JIC connections, you'd need a separate adapter upstream of this fitting rather than mixing connection types at this tee.

Question by: Cheryl G on Oct 18, 2025, 6:18 PM

trying to tie three DIN tube lines together, what are the ends on this tee?

Answer by: Customer Support on Oct 20, 2025, 1:48 PM

All three ports are DIN tube connections with M36 x 2.0 threads in size L28. Two ends are male, and the branch end is a female M36 x 2.0 L28 swivel connection.
