Din X F Din Swivel Branch Tee

Ask A Question

Description & Features

Constructed from durable steel, this Din X F Din Swivel Branch Tee is designed for robust industrial applications requiring reliable hydraulic connections. The tee features a versatile M30 X 2.0 thread size across all three sides, with male connections on the first two sides and a female connection on the third. This configuration ensures compatibility and ease of installation in complex hydraulic systems.

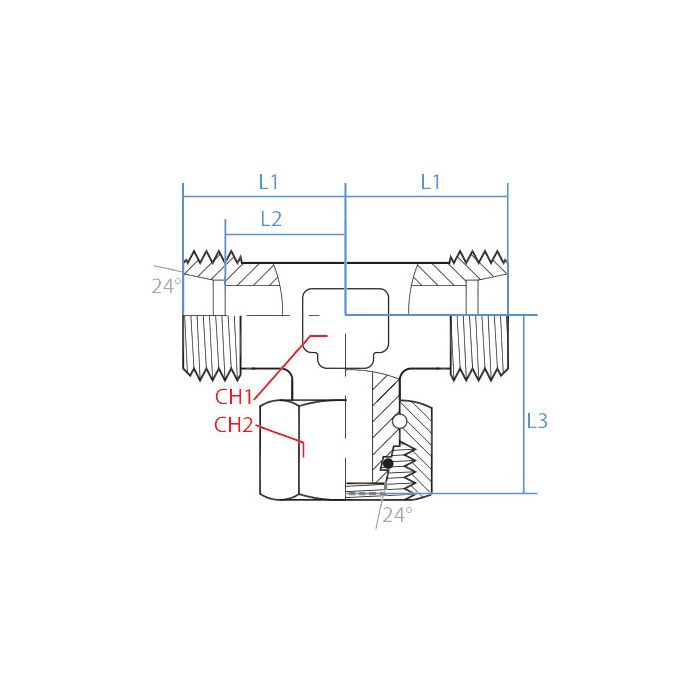

The Adaptall tee boasts precise dimensions, including a width of 27mm and 36mm on different channels, and lengths of 37mm, 26.5mm, and 44.5mm for efficient fitment. Its steel construction not only provides strength but also enhances the product's longevity and performance under demanding conditions. Ideal for use in hydraulic systems where secure and efficient fluid transfer is paramount, this tee is a reliable choice for professionals.

SKU: 5387S-20

Supplier Part Number (MPN): 5387S-20

Specifications

Brand
adapt-all
Connection Size 1
20 mm
Connection Size 2
20 mm
Connection Size 3
S20
Connection Type
Female Metric, Female Metric Swivel
Connection Type 1
Female Metric DIN 24 deg Tube Swivel
Connection Type 2
Female Metric DIN 24 deg Tube
Connection Type 3
Female Metric DIN 24 deg Tube Swivel
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
74 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
5387 Series
Thread Size
M30x2

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Hex Size Price Action
Din X F Din Swivel Branch Tee

5387S-16

S16

S16

S16

M24x1.5

24 mm, 30 mm

Product Questions & Answers (3)

Question by: Ralph W on Sep 13, 2025, 11:14 AM
got a DIN tube setup with M30 x 2.0 on it, will this tee match up on all three ports?
Answer by: Customer Support on Sep 15, 2025, 6:13 AM
All three sides are M30 x 2.0 DIN tube connections. Side 1 and Side 2 are male (S20), and the branch side is a female DIN tube swivel (also S20), so it matches that thread size across the tee.
Question by: Merle W on Feb 1, 2026, 7:21 AM
Will this swivel tee work for connecting three lines that all have M30 x 2.0 threads?
Answer by: Customer Support on Feb 3, 2026, 6:15 AM
Yes, it will. This Adaptall tee features M30 x 2.0 threads on all three sides, so you can easily connect three lines with the same thread size.
Question by: Rusty P on Jul 22, 2025, 9:58 AM
All three ports on this thing are M30 X 2.0, that right? Trying to figure out if the threads match up on both the male and female sides before I order.
Answer by: Customer Support on Jul 24, 2025, 6:15 AM
all three connections run M30 X 2.0 thread. Two of the ports are male DIN tube and the third is female DIN tube, so the thread pitch is consistent across the whole fitting. That makes it a lot easier to work into an existing DIN-based hydraulic line without mixing thread specs.
