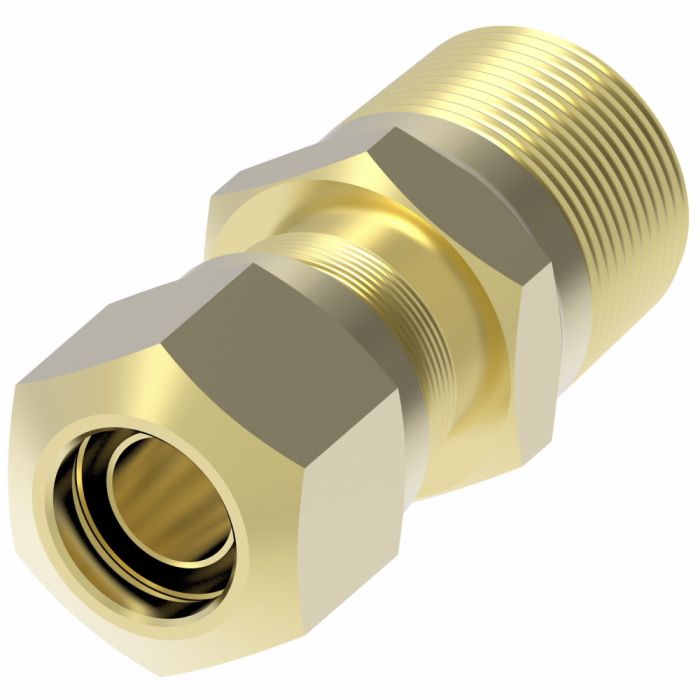

Designed for air brake systems on commercial vehicles, the Danfoss / Eaton Brass Tube Adapter provides a reliable NPTF male to hose/tube female straight connection in a 3/4 in. x 1/2 in. configuration. Constructed from brass with Dura-Kote plating, it delivers strong corrosion resistance suited to demanding road and fleet environments. The adapter meets DOT FMVSS 571.106 compliance and SAE 100102BA certification, making it appropriate for regulated air brake circuit use. It is rated for use down to -40°F, though it is not recommended for applications where temperatures exceed +200°F or where battery acid exposure is possible.
Operating pressures exceed standard SAE requirements, and the Aeroquip product line offers a broad range of styles to accommodate varied connection requirements. The 0.813 in. hex on the female end simplifies installation with standard tooling.
SKU: 1468X8X12
Supplier Part Number (MPN): 1468X8X12
Alternate Part Numbers: C1HD19, FMC3627759
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1HD19, Alternate Part Number FMC3627759, Alternate Part Number MINO-00015X03085
Application
Air brake systems except
where temperatures exceed
+200°F or where battery
acid can drip on tubing.
Certifications
SAE 100102BA
Compliances
DOT FMVSS 571106
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.75
End Size 2
0.50
End Type 1
NPTF
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
0.81
ICC
Straight Adapters
Item Type
NPTF Male to Hose/Pipe/Tube Female
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
60
Product Material
Brass
Product Width
1.06
Sub Brand
None
Supplier Part Number
1468X8X12
Product Weight
0.05 lbs
Product Questions & Answers (1)
Question by: Shawn O on Apr 14, 2025, 3:38 PM
got a 3/4 NPTF male port and need to hook up 1/2 line, is that what this adapter is for?
Answer by: Customer Support on Apr 16, 2025, 6:04 AM
For connecting a 3/4 in. NPTF male thread into a 1/2 in. hose, tube, or line female end, that is exactly the job this straight brass adapter is built to do.
