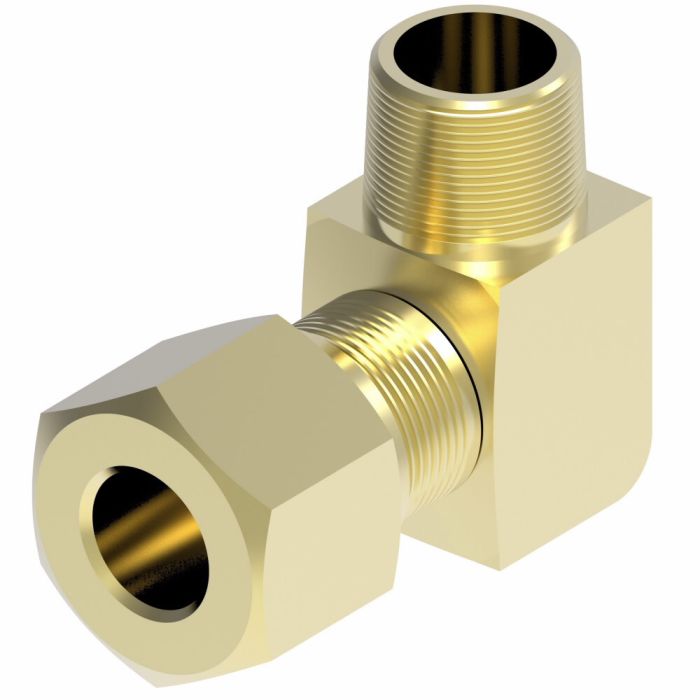

Designed for air brake systems, this 90° male elbow adapter connects a #12 air brake line/hose/tube end to a #8 NPTF male thread, with a 0.75-inch female tube end and a 0.5-inch NPTF male end. Constructed from brass with Aeroquip's Dura-Kote plating, the fitting delivers strong corrosion resistance suited to demanding environments. The adapter meets SAE 100202BA certification and is rated for operating pressures above standard SAE requirements, with a minimum working temperature of -40°F.
The BRASS #12 A.B. X #8 MP 90* is part of a broad Aeroquip air brake connector line offering design flexibility across a wide range of configurations. A 1.13-inch hex size and 1.34-inch drop dimension support straightforward installation in space-constrained routing applications.
SKU: 1469X12
Supplier Part Number (MPN): 1469X12
Alternate Part Numbers: MI-00354346, MINO-00925F88520
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-00354346, Alternate Part Number MINO-00015X03099, Alternate Part Number MINO-00925F88520
Application
Air brake systems
Certifications
SAE 100202BA
Drop Dimension
1.34
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.50
End Size 2
0.75
End Type 1
NPTF
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
1.13
ICC
Elbow Adapters
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
60
Product Material
Brass
Product Width
1.13
Sub Brand
None
Supplier Part Number
1469X12
Product Weight
0.41 lbs
Product Questions & Answers (1)
Question by: Donna H on Jul 16, 2025, 10:05 AM
So this here adapter, it'll work okay in an air brake system?
Answer by: Customer Support on Jul 17, 2025, 2:40 PM
Absolutely, this elbow adapter is specifically designed for use in air brake systems, meeting SAE 100202BA standards.
