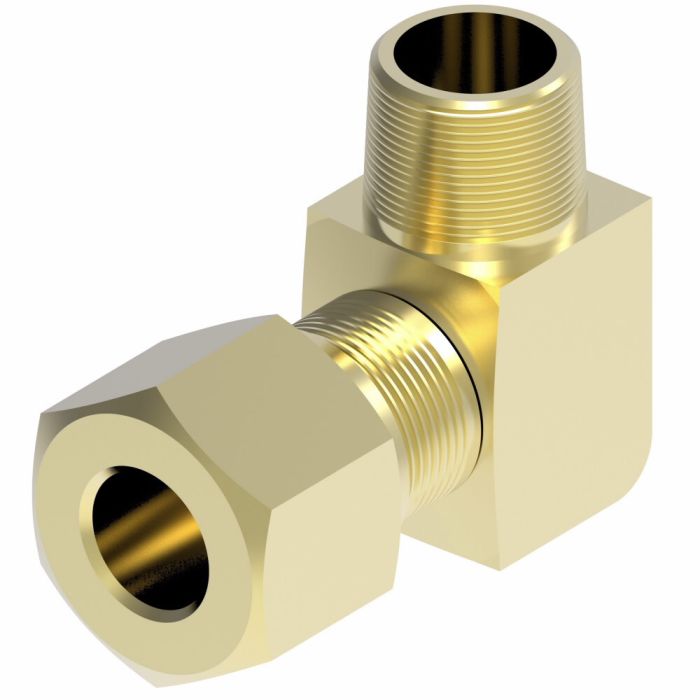

Designed for air brake systems, this brass 90° elbow adapter connects a 1/8 in. NPTF male thread to a 3/8 in. female line/hose/tube end, making it well suited for routing nylon tubing in constrained or angled installations. The elbow configuration allows directional changes in line routing without requiring additional fittings.
The Danfoss / Eaton Brass Adapter is finished with Dura-Kote plating, providing corrosion resistance suited to demanding service environments. Operating temperatures start at -40°F, and the fitting meets SAE J1262 air brake connector standards. With a 0.63 in. hex and a drop dimension of 0.76 in., it integrates cleanly into compact assemblies where clearance is limited.
SKU: 1469X6X2Z
Supplier Part Number (MPN): 1469X6X2Z
|
Alternate Part Numbers
MINO-00015X03112
|
Application
Air brake systems
|
Certifications
SAE 100202BA
|
Drop Dimension
0.76
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.13
|
End Size 2
0.38
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.63
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.63
|
Sub Brand
None
|
Supplier Part Number
1469X6X2Z
|
Product Weight
0.09 lbs
|
