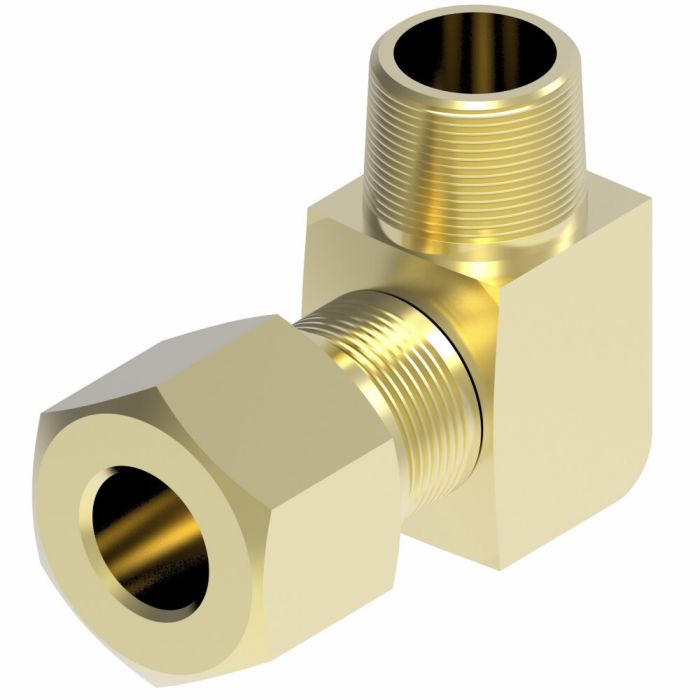

Ideal for air brake systems, this 90° male elbow adapter provides reliable connections for nylon tubing. Constructed from durable brass, it features Dura-Kote plating, offering superior resistance to corrosion. Designed to exceed SAE standards, this adapter allows for higher operating pressures, ensuring robust performance in demanding environments. The adapter's NPTF male end measures 0.375 inches, while the line/hose/tube female end is 0.5 inches, providing flexibility across various applications.
With a drop dimension of 1.3900 inches and a hex size of 0.81 inches, this Danfoss / Eaton Brass Adapter offers a compact solution for tight spaces. Certified to SAE 100202BA standards, it guarantees compatibility and safety in industrial settings. Whether you're retrofitting or building new systems, this elbow adapter provides the design flexibility you need with hundreds of styles available.
SKU: 1469X8L
Supplier Part Number (MPN): 1469X8L
|
Alternate Part Numbers
MINO-00015X03123
|
Application
Air brake systems
|
Certifications
SAE 100202BA
|
Drop Dimension
1.39
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.38
|
End Size 2
0.50
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.81
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.81
|
Sub Brand
None
|
Supplier Part Number
1469X8L
|
Product Weight
0.26 lbs
|
