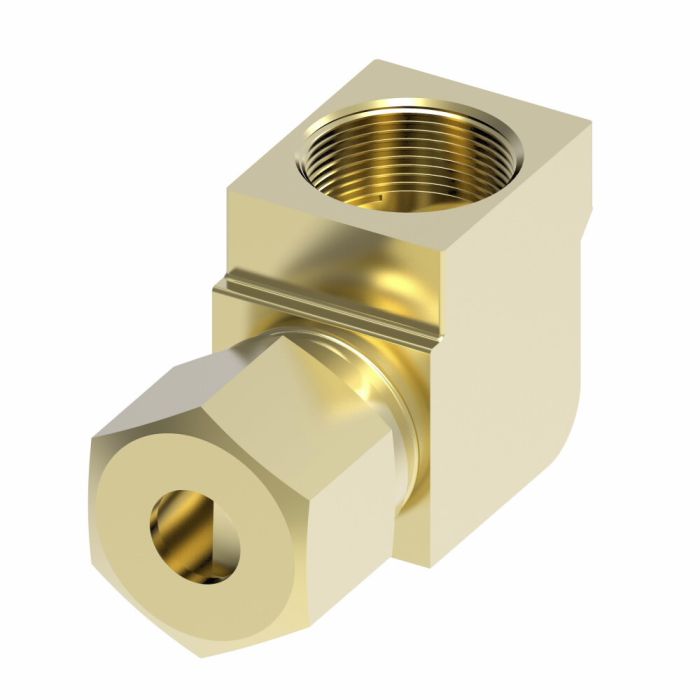

Designed for air brake systems, this 90° female elbow adapter connects a 1/8 inch NPTF female port to a 7/16 inch line, hose, or tube female end in a right-angle configuration. The Danfoss / Eaton Brass Adapter is constructed from brass and finished with Dura-Kote plating, which provides corrosion resistance suited to demanding service environments.
Rated to perform at temperatures as low as -40°F and built to exceed SAE 100202BA pressure standards, this fitting is a reliable choice where higher operating pressures are a factor. The Aeroquip product line offers hundreds of styles, giving engineers flexibility when specifying fittings across a range of air brake and industrial fluid connector applications.
SKU: 1470X4
Supplier Part Number (MPN): 1470X4
|
Alternate Part Numbers
MINO-00015X03131
|
Application
Air brake systems
|
Certifications
SAE 100202BA
|
Drop Dimension
0.53
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 1
0.13
|
End Size 2
0.44
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.56
|
ICC
Elbow Adapters
|
Item Type
NPTF Female/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.57
|
Sub Brand
None
|
Supplier Part Number
1470X4
|
Product Weight
0.08 lbs
|
