Male Orfs X Female Jis

Ask A Question

Description & Features

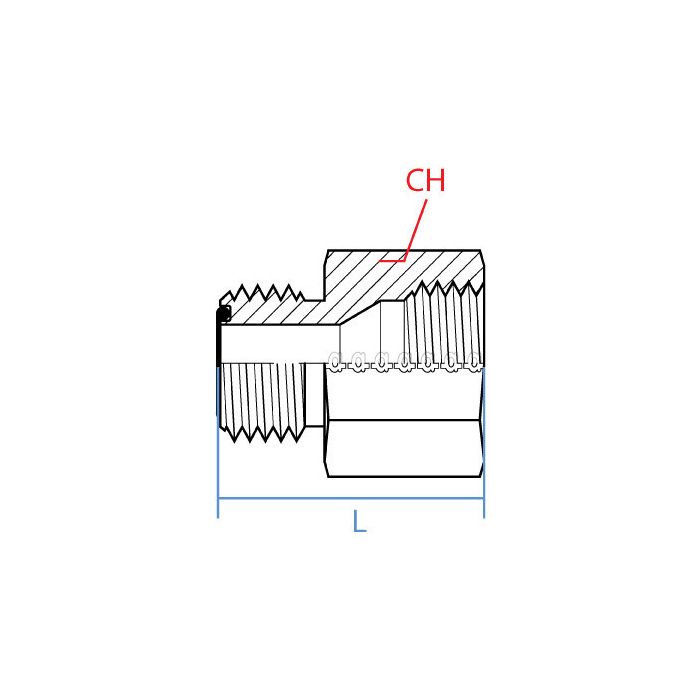

This versatile hydraulic adapter features a Male ORFS (O-Ring Face Seal) connection on one side and a Female JIS (Japanese Industrial Standard) connection on the other, ensuring compatibility with a variety of hydraulic systems. Manufactured from durable steel, this adapter provides excellent resistance to pressure and wear, making it ideal for demanding industrial environments. With a straight shape and a compact design, it accommodates tight spaces without compromising on performance.

The Male ORFS side has a thread size of 11/16 - 16 UN, while the Female JIS side features a G 3/8 - 19 thread size. Both sides are designed to fit 3/8" connections, ensuring a secure and leak-free fit. Precision-engineered by Adaptall, this adapter is built to meet stringent quality standards, offering reliability and longevity in various high-pressure applications.

SKU: 6220-06-06

Supplier Part Number (MPN): 6220-06-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIS, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Female JIS
Dimension Standards
ISO 8434-3, JIS B 0202, SAE J1453
Dimensions
33.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
6220 Series
Thread Size
11/16-16 x 3/8-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Melvin A on Feb 27, 2026, 8:01 AM
Got a JIS female port on a piece of equipment and need to tie into an ORFS line, this the right adapter for that?
Answer by: Customer Support on Feb 28, 2026, 7:24 PM
That's what this one's built for. One end is a 3/8" Male ORFS with an 11/16-16 UN thread, and the other is a 3/8" Female JIS running a G 3/8-19 thread. If your JIS port and ORFS line are both 3/8", this adapter bridges them directly with no extra fittings in between.
Question by: Floyd W on Jul 28, 2025, 9:29 AM
got a hose end that’s ORFS male 11/16-16, will this adapter mate up to it and give me a JIS female on the other side?
Answer by: Customer Support on Jul 29, 2025, 2:12 PM
Side 1 is a Male ORFS with 11/16 - 16 UN threads and it is sized for a 3/8 inch connection. The other end is a Female JIS with G 3/8 - 19 threads, also for a 3/8 inch connection, so it converts ORFS male to JIS female in that size.
Question by: Tony P on Feb 22, 2026, 3:19 PM
Will this fitting hold up okay in a hydraulic system that runs pretty much non-stop?
Answer by: Customer Support on Feb 24, 2026, 12:13 PM
This adapter is manufactured from durable steel, providing excellent resistance to pressure and wear, which makes it suitable for demanding industrial environments.
