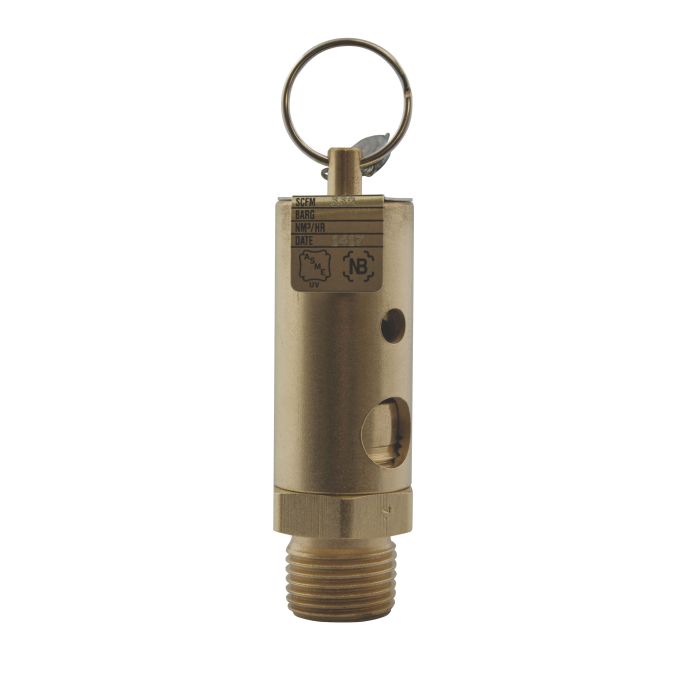

CONBRACO AIR RELIEF VALVE-1/2 - 100PSI

Description & Features

This Conbraco air relief valve is designed to automatically release excess pressure buildup in various industrial applications.

The valve is preset to a pressure of 100 PSI and features a 1/2 inch connection.

SKU: 15-117-B100

Supplier Part Number (MPN): 15117B100

Alternate Part Numbers: C1EM21

Brand Apollo®	Body Material Brass	Connection Type NPT	Dimensions 3.37 in H x 1.12 in W	Disc Material Brass	Domestic/Import Domestic	Media Air, Gas	Nominal Size 1/2 in	Seat Material FKM	Series 15 Series	Softgoods Material FKM	Stem Material Brass

Question by: Wayne R on Oct 22, 2025, 6:40 AM

Will this thing automatically pop open if the pressure hits 100 psi? Just want to make sure I understand how it works.

Answer by: Customer Support on Oct 24, 2025, 6:47 AM

That's what it's designed to do. This Conbraco air relief valve is preset to automatically release excess pressure when it reaches 100 PSI.

Question by: Ross M on Oct 19, 2025, 10:45 AM

got a line that’s spiking pressure sometimes. is this the kind of valve that’ll pop off on its own at 100 psi?

Answer by: Customer Support on Oct 20, 2025, 8:01 PM

Set up for automatic pressure release, it opens when pressure builds to its preset 100 PSI point and vents to relieve that excess pressure.
