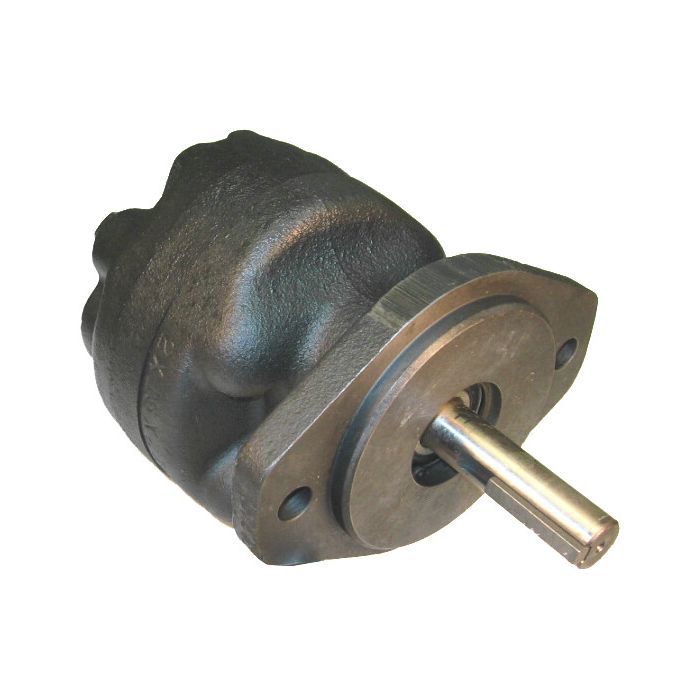

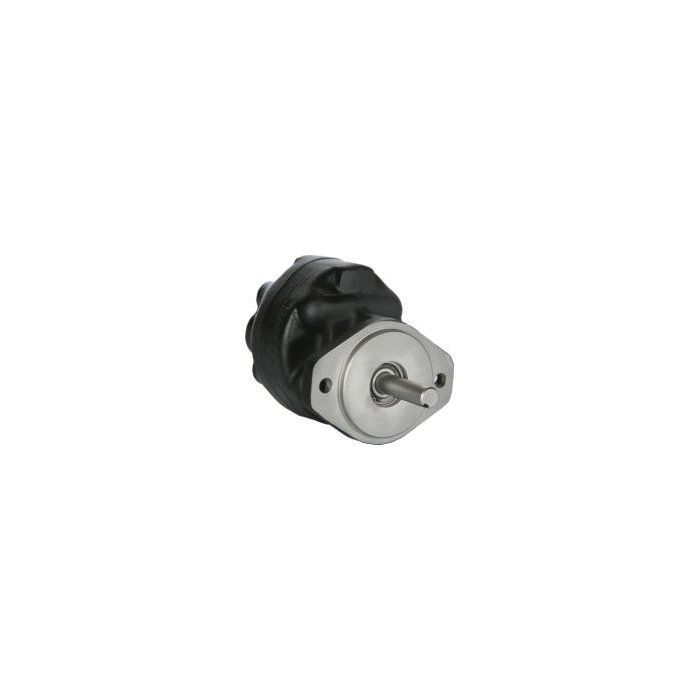

1500M Series Gear Motor, 0.74 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St.Keyed x 2.00 Long Shaft, 3/4 NPT Rear Ports, Bi-Rot.

Description & Features

Rated at 0.738 cu in/rev displacement and up to 3,600 RPM, the 1500M Series Gear Motor is a compact, bi-rotational unit suited for a wide range of mobile and industrial hydraulic drive applications. The 2-bolt SAE A mounting flange and 5/8 in. straight keyed shaft (2.00 in. long) support straightforward integration into standard hydraulic drive setups. Rear ports are 3/4 NPT, with a maximum system pressure of 2,000 PSI.

Hydreco's 1500M Series features heavy-duty iron castings and a four-bolt internal assembly design that maintains alignment under pressure, reducing wear on internal components. Pressure-balanced wear plates support consistent volumetric efficiency, while the pressure-lubricated roller bearing design contributes to durability even in moderate contamination conditions. A mechanical face seal enables high back pressure tolerance without requiring a case drain. The shielded outboard bearing on this model allows limited shaft side loading. Rated flow is 5.8 GPM, and maximum system temperature is 180°F. Anti-wear hydraulic fluid is recommended, with 10-micron absolute filtration for optimal service life.

SKU: 1506MC3E1BB

Supplier Part Number (MPN): 1506MC3E1BB

Alternate Part Numbers: C1AK78

Specifications

Displacement 0.74	Displacement 0.738	Brand CONTINENTAL HYDRAULICS INC	Brand Continental Hydraulics	Pack Size 1.00	UOM EA	Features Bi-Rotational, Shielded Outboard Bearing	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports 3/4 NPT Rear Ports	Ports 3/4 NPT Rear Ports	Pressure Rating 2000	Rated Flow 5.80	Rated Flow 5.8	Rotation Bi-Rot.	Shaft 5/8 St.Keyed x 2.00 Long	Shaft 5/8 St.Keyed x 2.00 Long	Speed Rating 3600 RPM	Speed Rating 3600 RPM	Supplier Part Number 1506MC3E1BB	Alternate Part Numbers Alternate Part Number C1AK78	Product Weight 17.07 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features	Price	Action
1510MC3E1BB 1500M Series Gear Motor	1.18	2-Bolt SAE A	5/8 St.Keyed x 2.00 Long	3/4 NPT Rear Ports	Shielded Outboard Bearing
1512MC3E1BB 1500M Series Gear Motor	1.467	2-Bolt SAE A	5/8 St.Keyed x 2.00 Long	3/4 NPT Rear Ports	Bi-Rotational, Shielded Outboard Bearing

Product Questions & Answers (3)

Question by: Jean T on Aug 17, 2025, 7:32 AM

runs at 3600 RPM, but is that continuous or just a peak number for this motor?

Answer by: Customer Support on Aug 19, 2025, 6:46 AM

At 0.738 cubic inches per revolution, the rated speed for this unit tops out at 3600 RPM. That figure is based on anti-wear hydraulic fluid, so if you're running something different, the safe operating range could shift. Keeping your system filtered to 10 micron absolute will do the most to protect it at higher speeds and extend the life of the internal components.

Question by: Harold W on May 9, 2025, 10:51 AM

Will this gear motor work for a hydraulic log splitter?

Answer by: Customer Support on May 11, 2025, 10:34 AM

This 1500M Series gear motor is bi-rotational and has a 2-bolt SAE A mounting flange, so it could potentially work for a hydraulic log splitter, provided that it meets the system's pressure and flow requirements. It's rated for up to 2000 PSI. Make sure the specs align with your log splitter's needs.

Question by: Gene C on Jul 15, 2025, 8:11 PM

got a 2-bolt SAE A mount and need rear ports, is this one set up that way or am i lookin at the wrong motor

Answer by: Customer Support on Jul 17, 2025, 6:25 AM

It matches a 2-bolt SAE A mounting flange and it uses 3/4 NPT rear ports. The shaft is a 5/8 straight keyed style with a 2.00 inch length, so those three items are the main physical match points.
