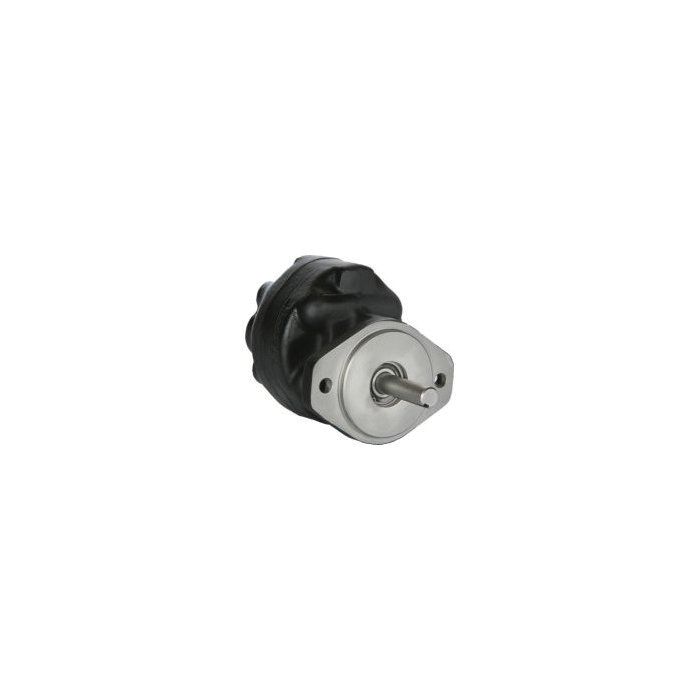

1500M Series Gear Motor, 1.47 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St.Keyed x 2.00 Long Shaft, 3/4 NPT Rear Ports, Bi-Rot.

Ask A Question

Description & Features

This Hydreco 1500M Series Gear Motor features a 1.47 cu in/rev displacement and a 2-Bolt SAE A mounting flange. Designed with heavy-duty iron castings, it is rated for pressures up to 2000 PSI.

The bi-rotational gear motor includes 3/4 NPT rear ports and a 5/8 St.Keyed x 2.00 long shaft. It features pressure-lubricated roller bearings, making it contamination resistant and fully repairable. A shielded outboard bearing allows limited side loading of the input shaft, while a mechanical face seal allows for high back pressures without requiring a case drain.

SKU: 1512MC3E1BB

Supplier Part Number (MPN): 1512MC3E1BB

Alternate Part Numbers: C1AK88

Specifications

Brand
Hydreco
Bearing Type
Roller
Dimensions
5.03 in L x 4.19 in W x 5.26 in H
grp Recommended Filtration
10 um Absolute For Maximum Motor Life
Housing Material
Iron
Inlet Type
NPT
Model
1512M
Mounting Type
SAE A 2-Bolt Flange
Outlet Type
NPT
Rotation
Reversible
Series
1500 Series
Shaft IO
5/8 in Straight Keyed x 2 in Long

Similar Products

Model Number Displacement Mount Shaft Ports Features Price Action
1500M Series Gear Motor, 0.74 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St.Keyed x 2.00 Long Shaft, 3/4 NPT Rear Ports, Bi-Rot.

1506MC3E1BB 1500M Series Gear Motor

0.738

2-Bolt SAE A

5/8 St.Keyed x 2.00 Long

3/4 NPT Rear Ports

Bi-Rotational, Shielded Outboard Bearing

1500M Series Gear Motor, 1.18 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St.Keyed x 2.00 Long Shaft, 3/4 NPT Rear Ports, Bi-Rot.

1510MC3E1BB 1500M Series Gear Motor

1.18

2-Bolt SAE A

5/8 St.Keyed x 2.00 Long

3/4 NPT Rear Ports

Shielded Outboard Bearing

Product Questions & Answers (2)

Question by: Cody R on Aug 24, 2025, 8:17 AM
What kind of fluid should I be using in this motor?
Answer by: Customer Support on Aug 25, 2025, 8:31 PM
Ratings for this gear motor are based on using anti-wear hydraulic fluid. You should contact us if you're considering using other types of fluid so we can help you determine compatibility.
Question by: Tommy J on Mar 3, 2026, 3:44 PM
Motor runs both directions on this one, right? Got a application where it needs to reverse and just want to make sure before we order.
Answer by: Customer Support on Mar 4, 2026, 9:42 PM
bi-rotational is confirmed on this unit. You can run it in either direction without any modification, which makes it a solid fit for reversing applications. The 3/4 NPT rear ports are set up to handle flow from either side, so no special hydraulic connections tricks are needed to make the reversal work.
