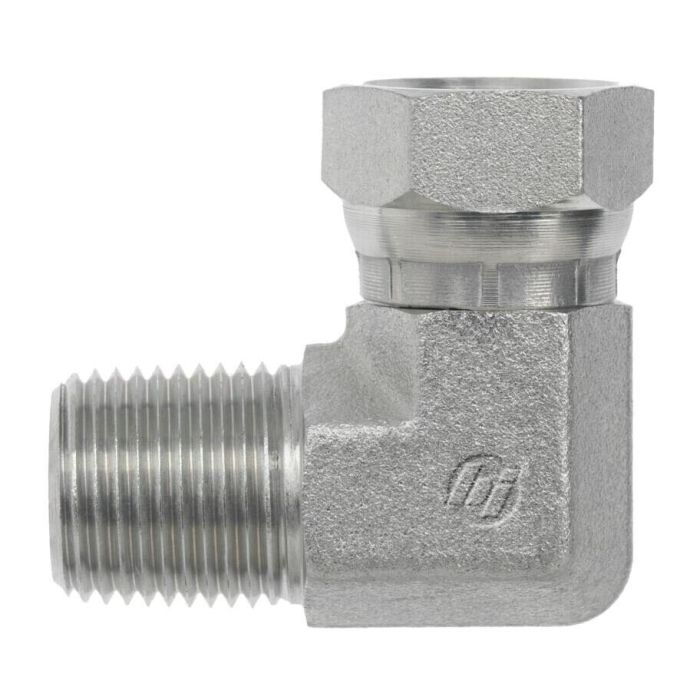

#6 MP X #4 FP Swivel 90*

Description & Features

The #6 MP X #4 FP Swivel 90* is engineered to meet the demanding specifications of SAE J476 and SAE J514 standards. Featuring a 90-degree elbow configuration this component is crafted from high-quality forged steel ensuring robustness and durability under a maximum dynamic pressure of 6 000 psi.

Thread details include a Male NPTF with a size of 3/8-18 and a Female NPSM Swivel sized at 1/4-18 providing versatile connectivity in various industrial applications.

Measurements include a C Hex of 0.688 mm Centerline Length of 1.180 mm and 0.990 mm for lengths 1 and 2 respectively and an overall length of 1.220 mm. This ensures precise fitting and reliable performance.

Its compact design with a cubic inch space of 1.673 makes it suitable for space-constrained environments delivering optimal performance without occupying excessive area.

MPN: 1501-06-04-FG

Supplier Part Number: 1501-06-04-FG

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1501-06-04-FG

Product Questions & Answers (2)

Question by: Brett M on Sep 5, 2025, 7:23 AM

Reckon this'll hold up to 6000 psi like it says?

Answer by: Customer Support on Sep 7, 2025, 6:57 AM

Absolutely, this 90-degree elbow fitting is built from forged steel specifically to handle a maximum dynamic pressure of 6000 psi.

Question by: Cindy A on Feb 7, 2026, 4:42 PM

trying to swap out an elbow fitting i’ve got, what are the thread sizes on each end of this 90?

Answer by: Customer Support on Feb 9, 2026, 6:56 AM

On one side you have a 3/8-18 male NPTF thread. The other side is a 1/4-18 female NPSM swivel.
