#6 MP X #8 FP SWIVEL 90

Description & Features

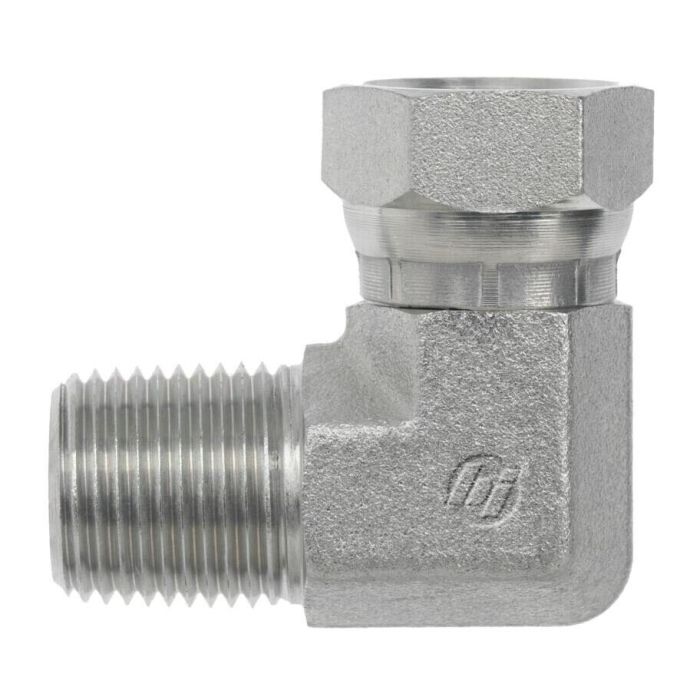

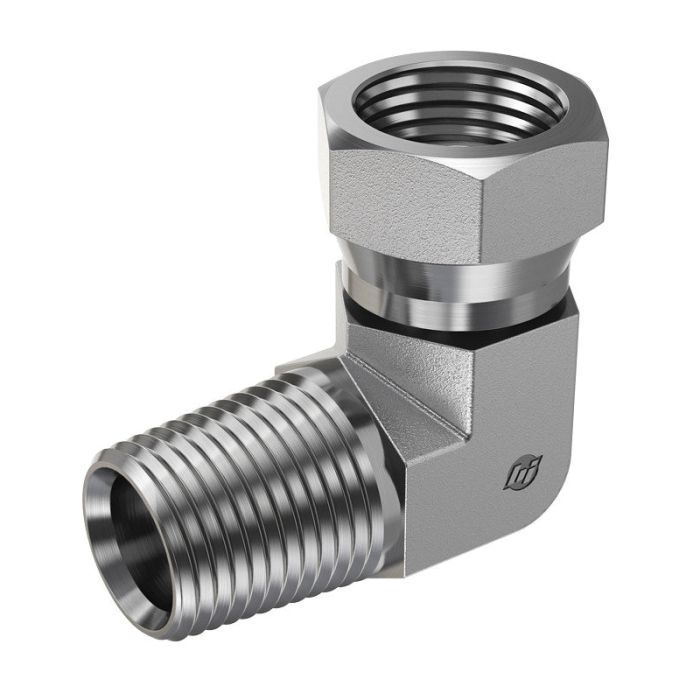

Forged from steel and rated to 5,000 PSI dynamic pressure, the #6 MP x #8 FP Swivel 90 is a 90-degree elbow fitting designed for reliable directional transitions in hydraulic line assemblies. The male end carries a 3/8-18 Male Nptf thread conforming to SAE J476, while the female swivel end features a 1/2-14 Female Npsm Swivel thread per SAE J514, a combination that accommodates misalignment and simplifies installation in tight routing configurations.

Forged steel construction gives this fitting the structural integrity required for high-pressure hydraulic circuits. The swivel capability on the female end allows the connected line to be positioned without inducing torque stress on the assembly. Part of the Brennan 1501-Fg series, this fitting suits mobile hydraulic equipment, industrial machinery, and fluid power systems where a compact 90-degree transition between differently sized connections is needed.

SKU: 1501-06-08-FG

Alternate Part Numbers: 1501-06-08, A2047-8-6S

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
3.253 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 1 in
l Dimensions
1.28 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
1/2-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#2 MP X #4 FP Swivel 90*

1501-02-04-FG

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

02MP-02FP X 90 -FORGED

1501-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

#4 MP X #4 FP Swivel 90*

1501-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

#4 MP X #6 FP (SWIVEL) 90*

1501-04-06-FG

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

#4 MP X #8 FP (Swivel) 90*

1501-04-08-FG

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 MP X #4 FP Swivel 90*

1501-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 in

#6 MP X #6 FP Swivel 90*

1501-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

#6 MP X #12 FP Swivel 90*

1501-06-12-FG

3/8 in

3/4 in

3/4-14 x 3/8-18

1-1/4

#8 MP X #4 FP Swivel 90*

1501-08-04-FG

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 in

#8 MP X #6 FP Swivel 90*

1501-08-06-FG

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08FPS 90 ELBOW

1501-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

#8 MP X #12 FP SWIVEL 90*

1501-08-12-FG

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

#12 MP X #8 FP Swivel 90*

1501-12-08-FG

3/4 in

1/2 in

3/4-14 x 1/2-14

1 x 1 in

#12 MP X #12 FP Swivel 90*

1501-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

#16 MP X #8 FP (Swivel) 90*

1501-16-08-FG

1 in

1/2 in

1-11-1/2 x 1/2-14

1 x 1 in

#16 MP X #12 FP Swivel 90*

1501-16-12-FG

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

#16 MP X #16 FP Swivel 90*

1501-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

#16 MP X #20 FP (Swivel) 90*

1501-16-20-FG

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

#20 MP X #16 FP Swivel 90*

1501-20-16-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-1/2 in

#20 MP X #20 FP Swivel 90*

1501-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

#24 MP X #24 FP Swivel 90*

1501-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 MP X #32 FP Swivel 90*

1501-32-32-FG

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Gary F on Apr 17, 2025, 6:49 PM
Will this fitting work for connecting lines with different thread sizes?
Answer by: Customer Support on Apr 18, 2025, 7:00 PM
Yes, this 90-degree elbow is designed to transition between a 3/8-18 Male NPTF thread and a 1/2-14 Female NPSM Swivel thread, which allows it to connect lines with different sizes.
