#6 MP X #12 FP Swivel 90*

Description & Features

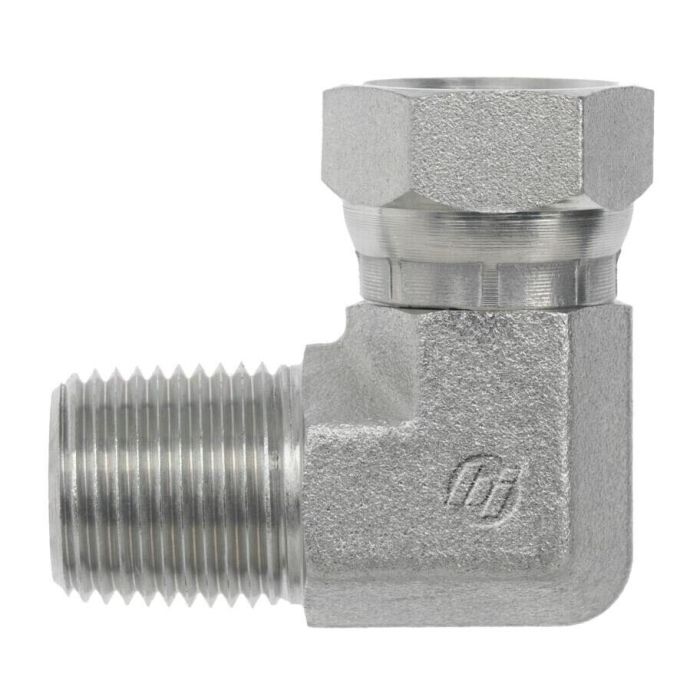

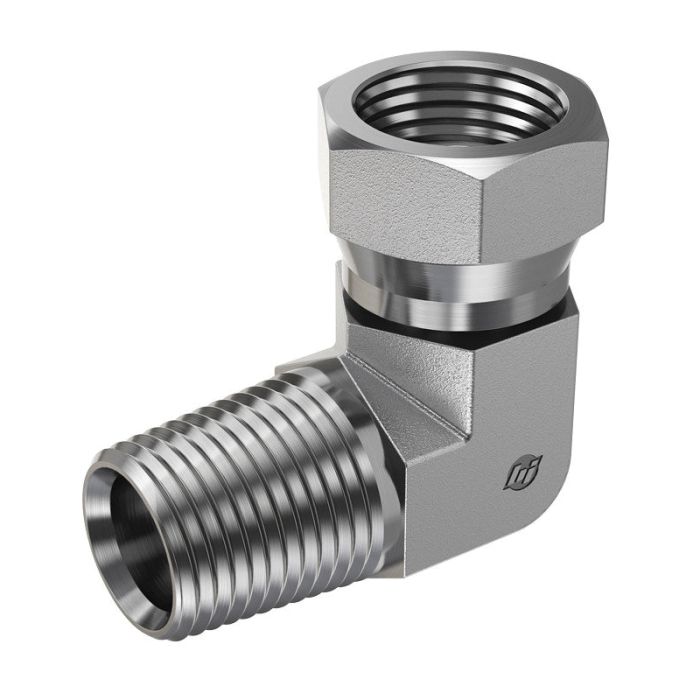

The #6 MP X #12 FP Swivel 90 by Brennan Industries Inc is a durable and efficient component designed for high-pressure hydraulic applications. Made from forged steel this elbow fitting ensures maximum strength and longevity. It can handle a maximum dynamic pressure of up to 3 000 psi making it suitable for demanding industrial environments.

With precise specifications such as a centerline length of 1.650 mm and 1.300 mm respectively this fitting offers reliable performance. It features a male NPTF thread of 3/8-18 conforming to SAE J476 standards and a female NPSM swivel thread of 3/4-14 meeting SAE J514 specifications. The overall length is 1.400 mm and it has a hex size of 1.250 mm for easy installation.

This 90-degree elbow fitting is designed for secure and leak-free connections. Its compact cubic inch space of 5.521 makes it an excellent choice for space-constrained setups. Note that this product comes with a California Prop-65 warning for residents.

Supplier Part Number: 1501-06-12-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
5.521 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/4
l Dimensions
1.4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.635 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/4-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#2 MP X #4 FP Swivel 90*

1501-02-04-FG

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

02MP-02FP X 90 -FORGED

1501-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

#4 MP X #4 FP Swivel 90*

1501-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

#4 MP X #6 FP (SWIVEL) 90*

1501-04-06-FG

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

#4 MP X #8 FP (Swivel) 90*

1501-04-08-FG

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 MP X #4 FP Swivel 90*

1501-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 in

#6 MP X #6 FP Swivel 90*

1501-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

#6 MP X #8 FP SWIVEL 90

1501-06-08-FG

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

#8 MP X #4 FP Swivel 90*

1501-08-04-FG

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 in

#8 MP X #6 FP Swivel 90*

1501-08-06-FG

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08FPS 90 ELBOW

1501-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

#8 MP X #12 FP SWIVEL 90*

1501-08-12-FG

1/2 in

3/4 in

3/4-14 x 1/2-14

1-1/4

#12 MP X #8 FP Swivel 90*

1501-12-08-FG

3/4 in

1/2 in

3/4-14 x 1/2-14

1 x 1 in

#12 MP X #12 FP Swivel 90*

1501-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

#16 MP X #8 FP (Swivel) 90*

1501-16-08-FG

1 in

1/2 in

1-11-1/2 x 1/2-14

1 x 1 in

#16 MP X #12 FP Swivel 90*

1501-16-12-FG

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

#16 MP X #16 FP Swivel 90*

1501-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

#16 MP X #20 FP (Swivel) 90*

1501-16-20-FG

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

#20 MP X #16 FP Swivel 90*

1501-20-16-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-1/2 in

#20 MP X #20 FP Swivel 90*

1501-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

#24 MP X #24 FP Swivel 90*

1501-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 MP X #32 FP Swivel 90*

1501-32-32-FG

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (3)

Question by: Frank H on Jan 15, 2026, 8:33 PM
Is this elbow made outta steel or something else?
Answer by: Customer Support on Jan 17, 2026, 6:04 AM
Forged steel is the raw material used for this elbow, ensuring strength in high-pressure hydraulic systems.
Question by: Rod W on Dec 18, 2025, 12:34 PM
what's the pressure rating on this fitting, and will it hold up running a loader or similar equipment day in and day out?
Answer by: Customer Support on Dec 19, 2025, 3:18 PM
Rated at 3,000 psi maximum dynamic pressure, this forged steel elbow is built for the kind of continuous, hard-use hydraulic work you'd see on loaders and similar equipment. Forged steel construction gives it better fatigue resistance than cast alternatives, so it's not just a peak-pressure rating. It should hold up fine under sustained operating loads within that pressure range.
Question by: Shane G on Mar 14, 2026, 2:11 PM
trying to swap out an elbow on a press line, is this one the 3/8-18 male pipe thread on one end and a 3/4-14 female swivel on the other?
Answer by: Customer Support on Mar 16, 2026, 8:35 AM
It has a 3/8-18 male NPTF thread (SAE J476) on one side and a 3/4-14 female NPSM swivel thread (SAE J514) on the other, in a 90 degree elbow.
