main product photo

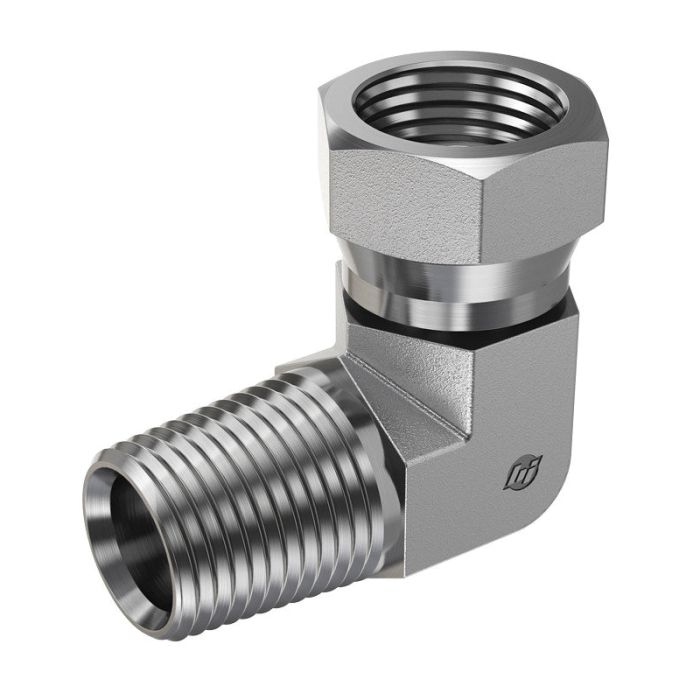

#8 MP X #4 FP Swivel 90*

Ask A Question

Description & Features

The #8 MP X #4 FP Swivel 90* from Brennan Industries Inc offers reliable performance in demanding environments. This 90-degree elbow fitting is crafted from forged steel ensuring robust durability and a long service life. Designed for high-pressure applications it can withstand a maximum dynamic pressure of 6 000 psi.

The fitting features a male NPTF thread size of 1/2-14 compliant with SAE J476 specifications and a female NPSM swivel thread size of 1/4-18 meeting SAE J514 standards. The C Hex measures 0.688 mm contributing to its compact design.

It has a centerline length of 1.210 mm and 1.020 mm for its respective connection points making it suitable for precision installations. The overall length is 1.470 mm and its cubic inch space is 2.056.

Supplier Part Number: 1501-08-04-FG

MPN: 1501-08-04-FG

California residents should note the PROP-65 warning associated with this product.

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
2.056 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.47 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
11/16 in
l Dimensions
1.47 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.21 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 1/4-18

Product Questions & Answers (3)

Question by: Cody M on Nov 30, 2025, 3:03 PM
trying to swap out an elbow on a skid, what thread sizes are on each end of this 90?
Answer by: Customer Support on Dec 1, 2025, 9:03 PM
On the male side it is 1/2-14 Male NPTF (SAE J476). The swivel side is 1/4-18 Female NPSM (SAE J514).
Question by: Glen G on May 29, 2025, 6:09 PM
does this fitting handle 6000 psi or is that just a static rating? got some high-pressure lines i need to route at a 90 and want to make sure it'll hold up under load
Answer by: Customer Support on May 31, 2025, 12:17 PM
The 6,000 psi rating on this one is the maximum dynamic pressure, so it's rated for pressure under working conditions, not just static. Forged steel construction keeps it solid through pressure cycles, which is what you'd expect for a fitting meant to handle real hydraulic loads.
Question by: Keith C on May 29, 2025, 9:42 AM
What’s the highest pressure this fitting can handle without blowing apart?
Answer by: Customer Support on May 30, 2025, 10:02 AM
With its forged steel construction, this 90-degree elbow fitting is rated for dynamic pressures up to 6,000 psi.
