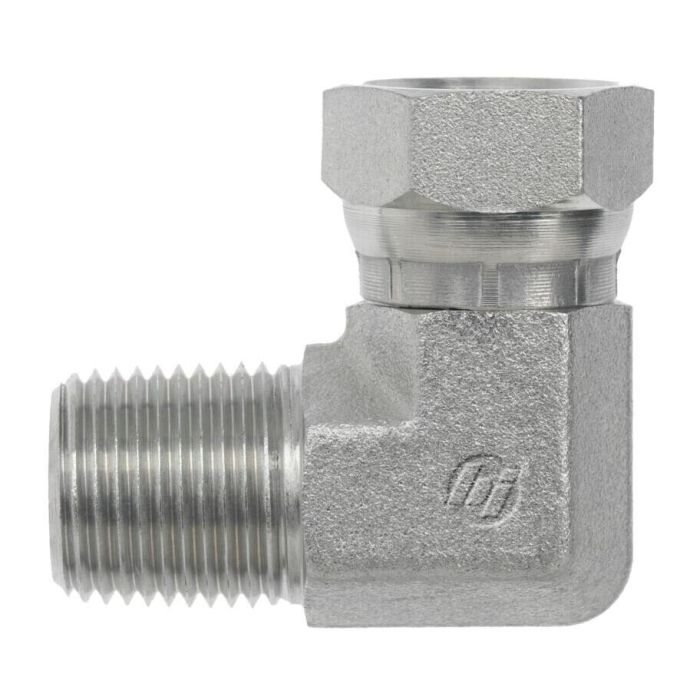

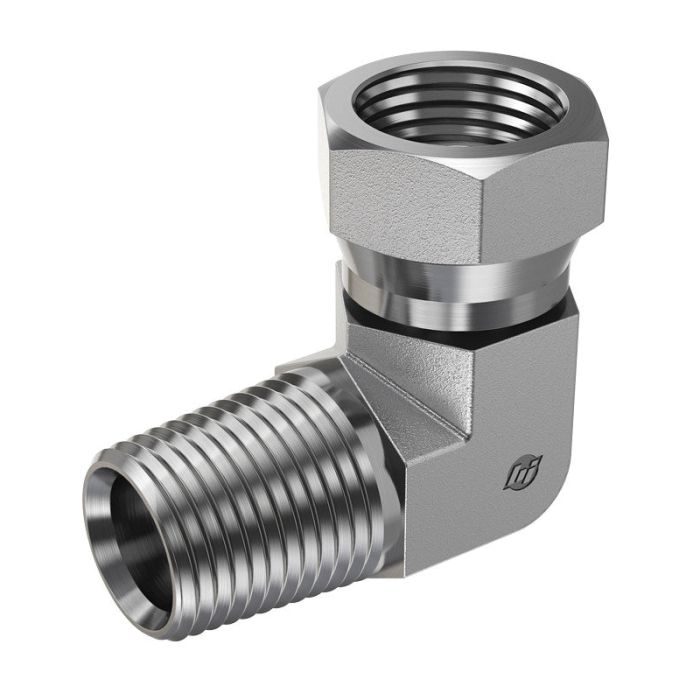

main product photo

#8 MP X #6 FP Swivel 90*

Ask A Question

Description & Features

The 08MP-06FPS 90 elbow forged fitting offers reliable performance under maximum dynamic pressure of 6 000 psi. Constructed from forged steel it ensures durability in demanding environments. This elbow fitting features a Male NPTF Thread B1 size of 1/2-14 and a Female NPSM Swivel Thread B2 size of 3/8-18 adhering to SAE J476 and SAE J514 standards respectively.

Its overall length is 1.470 mm with a centerline length of 1.250 mm for the first side and 1.040 mm for the second providing precise fitment. The cubic inch space occupied by this component is 2.817.

Supplier Part Number: 1501-08-06-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
2.817 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.47 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.47 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.32 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 3/8-18

Product Questions & Answers (3)

Question by: Ralph S on May 27, 2025, 8:47 AM
What kinda pressure can this thing handle?
Answer by: Customer Support on May 28, 2025, 3:19 PM
This elbow fitting is rated for a maximum dynamic pressure of 6,000 psi.
Question by: Jean J on Oct 20, 2025, 7:28 PM
Got a 1/2-14 NPTF male port on my manifold block, will the 08MP-06FPS mate up to that without any adapter in between?
Answer by: Customer Support on Oct 21, 2025, 8:08 PM
That male thread is 1/2-14 NPTF, conforming to SAE J476, so it'll thread straight into a matching female NPTF port on your manifold with no extra adapter needed. The female swivel side is 3/8-18 NPSM per SAE J514, so just make sure whatever hose end or fitting you're connecting on that side matches up to that spec.
Question by: Brent M on Nov 27, 2025, 9:20 PM
got a 1/2-14 male nptf port on one side and need a 3/8-18 female swivel on the other, is that what this 90 is?
Answer by: Customer Support on Nov 29, 2025, 8:51 PM
For fitment, the B1 end is a 1/2-14 male NPTF thread and the B2 end is a 3/8-18 female NPSM swivel thread. It is a 90 degree elbow, so it changes direction while making that thread transition.
