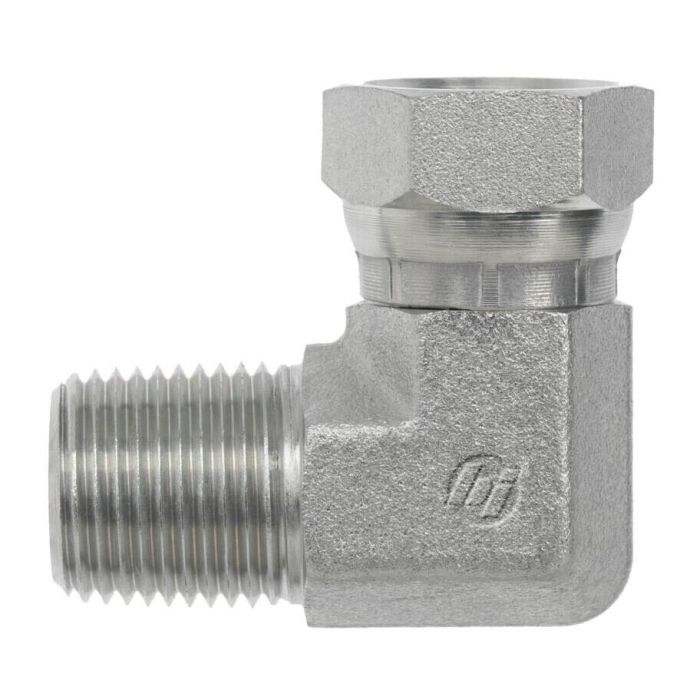

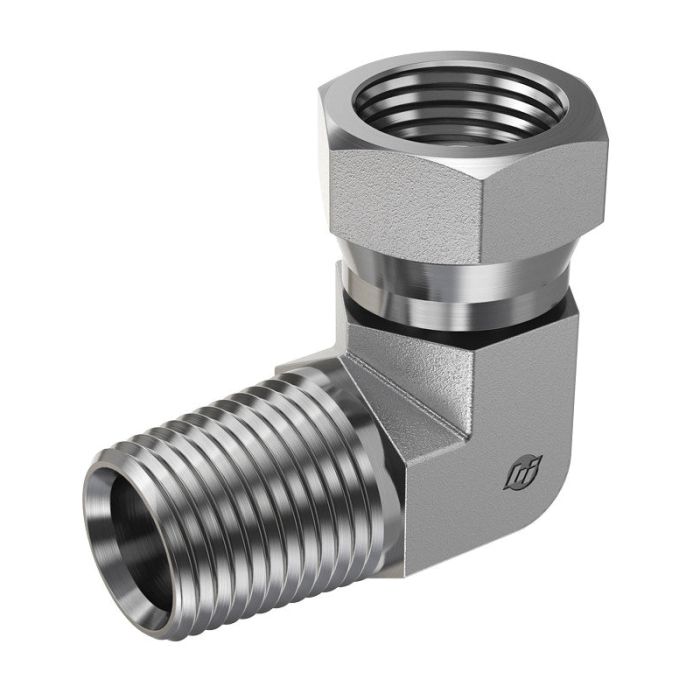

08MP-08FPS 90 ELBOW

Ask A Question

Description & Features

The 08MP-08FPS 90 ELBOW from Brennan Industries Inc is expertly crafted using forged steel for exceptional durability and strength.

Designed to meet SAE J476 and SAE J514 specifications this elbow adapter features a 1/2-14 Male NPTF thread on one end and a 1/2-14 Female NPSM Swivel thread on the other ensuring a reliable fit.

With a maximum dynamic pressure rating of 5 000 PSI this elbow is suitable for high-pressure applications. Its compact dimensions include a centerline length of 1.390 mm on one side and 1.110 mm on the other with an overall length of 1.470 mm.

The cubic inch space for installation is 3.6 making it ideal for use where space is limited. This adapters hex size is 1.000 mm adding to its ease of use and installation.

Supplier Part Number: 1501-08-08-FG

MPN: 1501-08-08-FG

California residents please be aware of the PROP-65 WARNING associated with this product.

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
3.6 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.47 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 1 in
l Dimensions
1.47 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.46 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (2)

Question by: Randy H on Nov 7, 2025, 7:30 PM
got a 1/2 NPTF male fitting on my manifold block and need to swing a line off at 90 degrees with a swivel end, this the right piece for that?
Answer by: Customer Support on Nov 9, 2025, 12:56 PM
That setup is exactly what this adapter is built for. One end threads in as a 1/2-14 Male NPTF, which is your dry-seal pipe thread, and the other end gives you a 1/2-14 Female NPSM Swivel so the hose or line can rotate during assembly without twisting. The 90 degree bend handles the direction change right at the port. Forged steel construction and a 5,000 PSI dynamic pressure rating make it solid enough for most high-pressure hydraulic work.
Question by: Randy R on Jun 10, 2025, 10:34 AM
Reckon this 90-degree elbow will hold up in a hydraulic system pushing 5000 PSI?
Answer by: Customer Support on Jun 12, 2025, 7:42 AM
Forged steel construction means it's designed to handle dynamic pressures up to 5000 PSI, so it should be right at home in that kind of system.
