MP-FPS 90 DEG

Description & Features

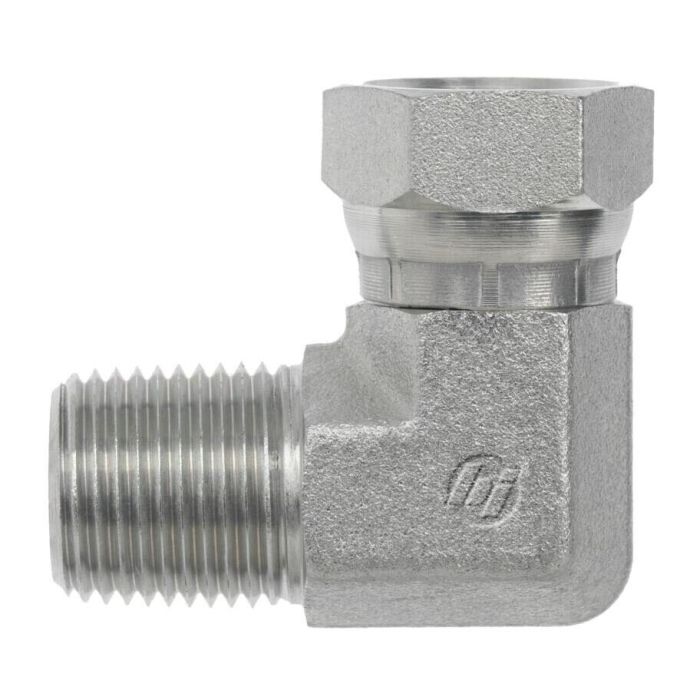

Forged from stainless steel, this 1/2-14 90-degree elbow fitting connects a Male NPTF thread (conforming to SAE J476) to a Female NPSM Swivel thread (conforming to SAE J514), making it well suited for hydraulic and fluid line applications where a right-angle transition between these thread forms is required. The swivel end simplifies installation by allowing rotation during make-up without twisting the connected line.

The MP-FPS 90 DEG is rated to 5,000 PSI maximum dynamic pressure and belongs to Brennan Industries' 1501-FG series. Forged stainless steel construction provides corrosion resistance in demanding service environments. Both thread ends are 1/2-14, with the Male NPTF port measuring 0.531 in. drill and the Female NPSM Swivel port at 0.440 in. drill. California residents should note the applicable Prop 65 warning associated with this product.

SKU: 1501-08-08-SS

Supplier Part Number (MPN): 1501-08-08-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1501-08-08-SS	Product Weight 0.79 lbs

Product Questions & Answers (1)

Question by: Curt H on Nov 13, 2025, 12:01 PM

If I'm connecting this to a hydraulic line, is it okay for general hydraulic applications?

Answer by: Customer Support on Nov 15, 2025, 7:20 AM

This 90-degree elbow fitting is well-suited for hydraulic and fluid line applications where you need to connect a Male NPTF thread to a Female NPSM Swivel thread at a right angle.
